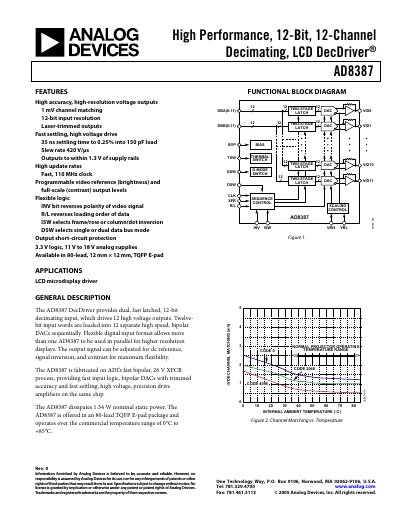

Analog Devices AD8387 12‑Bit 12‑Channel Decimating LCD DecDriver Datasheet
The AD8387 DecDriver provides dual, fast‑latched 12‑bit inputs that drive twelve high‑voltage LCD outputs. It features 12‑bit input resolution, 35 ns settling time into 150 pF loads, 420 V/µs slew rate, and programmable video reference and contrast levels. The device is supplied in an 80‑lead TQFP E‑pad package and operates from 11‑18 V AVCC and 3.3‑3.6 V DVCC.
Designed for LCD micro‑display drivers, the AD8387 includes overload protection via an output current limiter and a thermal switch, and requires careful PCB thermal‑pad and via design. Power‑on/off sequencing and grounded‑output mode procedures are detailed to ensure reliable operation across the 0 °C to 85 °C temperature range.
Analog Devices AD8387 specifications
| Input resolution | 12 bits |
|---|---|
| Settling time (0.25% into 150 pF) | 35 ns |
| Slew rate | 420 V/µs |
| Supply voltage (AVCC) | 11 V – 18 V |
| Supply voltage (DVCC) | 3.3 V – 3.6 V |
| Maximum output current per channel | 100 mA (average) |
| Operating temperature range | 0 °C to 85 °C |
Source: Analog Devices AD8387 12‑Bit 12‑Channel Decimating LCD DecDriver Datasheet
All Analog Devices AD8387 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current per channel?
Each output is internally limited to an average of 100 mA to protect against overload.
From: Analog Devices AD8387 12‑Bit 12‑Channel Decimating LCD DecDriver Datasheet
How does the AD8387 protect against overload?
It uses an output current limiter together with a thermal switch that can be enabled or disabled via the TSW pin.
From: Analog Devices AD8387 12‑Bit 12‑Channel Decimating LCD DecDriver Datasheet
What is the maximum output current per channel?
Each output is limited to an average of 100 mA by the internal current limiter.
What are the recommended analog supply voltages?
AVCC should be between 11 V and 18 V.
