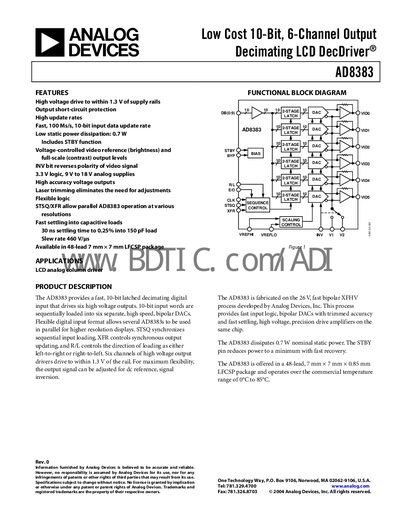

The document describes the low-cost 10-bit, 6-channel output decimating LCD DecDriver® AD8383 Rev. 0, which features high voltage drive, output short-circuit protection, high update rates, low static power dissipation, etc.
The AD8383 is a low‑cost, 10‑bit, 6‑channel video driver with high‑voltage outputs that can be driven within 1.3 V of the supply rails. It features fast 100 Ms/s input data update, low static power dissipation (0.7 W), and flexible logic for parallel operation to increase resolution.
The document provides full specifications, absolute maximum ratings, pin configuration, timing diagrams, and theory of operation. It also includes thermal design guidance, overload protection details, and ESD handling recommendations for reliable use in video display applications.
| Resolution | 10 bits |
|---|---|
| Maximum Input Data Update Rate | 100 Ms/s |
| Output Current per Channel | 100 mA |
| AVCC Supply Voltage Range | 9 V to 18 V |
| Operating Temperature Range | 0 °C to 85 °C |
| Static Power Dissipation | 0.7 W |
The AD8383 provides a 10‑bit resolution.
The device can update input data at up to 100 Ms/s.
Each output channel is limited to 100 mA average current.
AVCC operates from 9 V to 18 V.
The device operates from 0 °C up to 85 °C ambient temperature.
