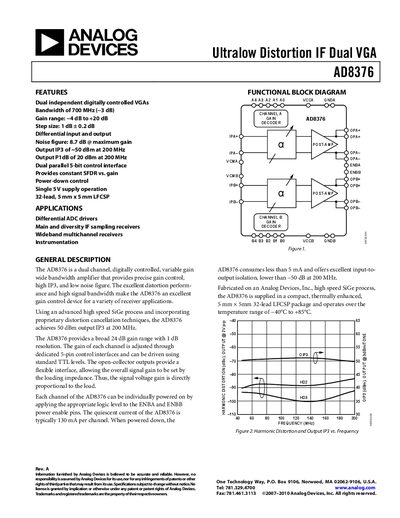

Analog Devices AD8376 Datasheet
The AD8376 is a dual‑channel, digitally controlled variable‑gain amplifier with a 700 MHz –3 dB bandwidth, gain range from –4 dB to +20 dB in 1 dB steps, and low noise figure (8.7 dB). It offers high output IP3 (~50 dBm at 200 MHz) and supports a single 5 V supply in a compact 32‑lead LFCSP package.
The datasheet provides detailed specifications, absolute maximum ratings, pin descriptions, typical performance curves, and ordering information. It also includes application notes for differential ADC drivers, IF sampling receivers, and instrumentation.
Analog Devices AD8376 specifications
| Bandwidth (‑3 dB) | 700 MHz |
|---|---|
| Gain range | ‑4 dB to +20 dB |
| Gain step size | 1 dB + 0.2 dB |
| Noise figure (max gain) | 8.7 dB |
| Output IP3 (200 MHz) | ~50 dBm |
| Output 1 dB compression point (200 MHz) | 20 dBm |
| Quiescent current (both channels enabled) | ≈130 mA |
| Package | 32‑lead 5 mm × 5 mm LFCSP |
