Start here

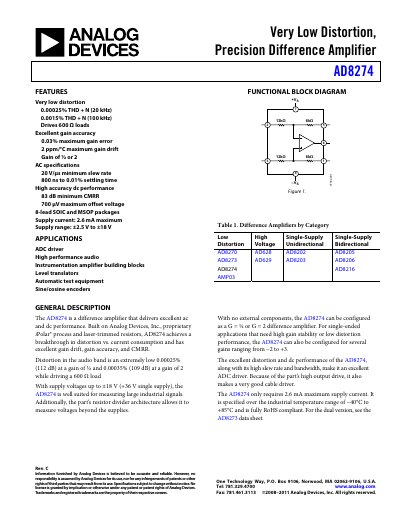

Analog Devices AD8274 Rev. C Datasheet
The AD8274 is a difference amplifier offering excellent AC and DC performance, including THD as low as 0.00025 % at a gain of ½ and the ability to drive 600 Ω loads. It operates from ±2.5 V to ±18 V, consumes only 2.6 mA per amplifier, and is RoHS‑compliant.
The datasheet provides detailed specifications such as gain error (0.03 %), gain drift (0.5‑2 ppm/°C), CMRR (≥83 dB), and recommended wiring practices (output resistor ≥20 Ω). Pin configurations, typical performance curves, and ordering information are also included.
Analog Devices AD8274 specifications
| Supply range | ±2.5 V to ±18 V |
|---|---|
| Gain error | 0.03 % |
| Supply current (per amplifier) | 2.6 mA max |
All Analog Devices AD8274 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the AD8274?
The device can be powered with supply voltages up to ±18 V.
What output resistor is recommended when driving cabling with the AD8274?
A series resistor of 20 Ω or higher is recommended to prevent peaking or instability.
What is the maximum supply voltage for the AD8274?
The device can be powered up to +18 V (or +36 V single‑supply).
From: Analog Devices AD8274 Precision Difference Amplifier Datasheet
How much current does the AD8274 draw per amplifier?
It requires a maximum supply current of 2.6 mA per amplifier.
From: Analog Devices AD8274 Precision Difference Amplifier Datasheet
