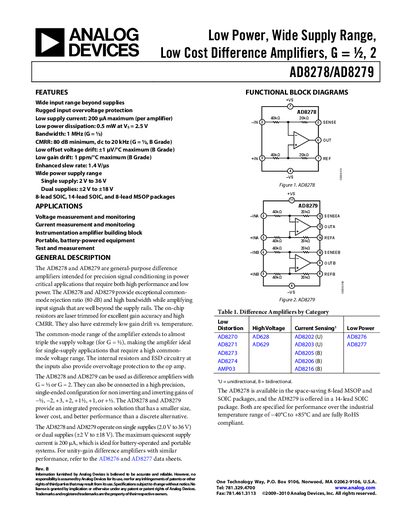

Analog Devices AD8278/AD8279 Datasheet
The AD8278 and AD8279 are low‑power, wide‑supply‑range difference amplifiers designed for precision signal‑conditioning in power‑critical applications. They offer high common‑mode rejection, low offset drift, and rugged over‑voltage protection, making them suitable for voltage and current monitoring, instrumentation amplifiers, and portable battery‑powered equipment.
The datasheet details electrical specifications such as supply current (200 pA for AD8278, 300 pA typical for AD8279), bandwidth (1 MHz at G=4, 550 kHz at G=2), slew rate (up to 1.4 V/ps), input voltage range, and temperature range (‑40 °C to +85 °C). Pin configurations for MSOP, SOIC and 14‑lead SOIC packages are included, along with absolute maximum ratings, thermal resistance, and ESD precautions.
Analog Devices AD8279 specifications
| Supply Current (AD8278) | 200 pA |
|---|---|
| Supply Current (AD8279) | 300 pA (typical) |
| Bandwidth (G = 2) | 550 kHz |
| Slew Rate | 1.4 V/ps |
| Input Voltage Range | ‑3 V to +3 V (relative to supply) |
All Analog Devices AD8279 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current for the AD8278?
The AD8278 typically draws 200 pA of supply current.
What supply voltage range does the AD8279 support?
The AD8279 can operate from a single supply of 2 V to 36 V or dual supplies of 2 V to +18 V.
What is the common‑mode rejection ratio of the AD8279?
The AD8279 provides a minimum CMRR of 80 dB.
Which package is the AD8279 offered in?
The AD8279 is offered in a 14‑lead SOIC package.
