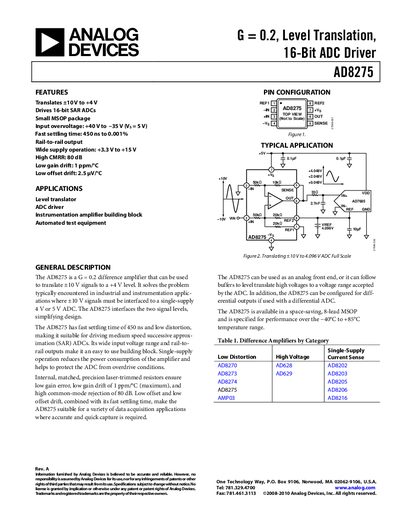

Analog Devices AD8275 Difference Amplifier Datasheet
The AD8275 is a G = 0.2 difference amplifier designed to translate +10 V signals to a +4 V level for single‑supply ADCs. It provides rail‑to‑rail output, wide supply operation (3.3 V to 15 V) and low gain drift, making it suitable for data‑acquisition and instrumentation applications.
Key features include fast 450 ns settling time, high CMRR (80 dB), low offset drift (2.5 pV/°C), and an 8‑lead MSOP package. The datasheet supplies detailed specifications, pin configuration, typical application circuits, and ordering information.
Analog Devices AD8275 specifications
| Gain (G) | 0.2 |
|---|---|
| Input Overvoltage | +40 V to –35 V |
| CMRR | 80 dB |
| Gain Drift | 1 ppm/°C |
| Offset Drift | 2.5 pV/°C |
| Short‑Circuit Current Limit | 30 mA |
Source: Analog Devices AD8275 Difference Amplifier Datasheet
