Start here

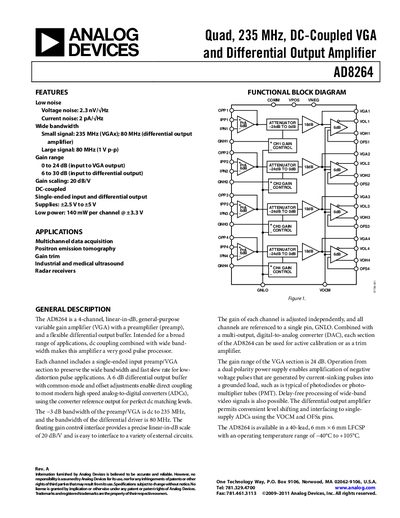

ANALOG DEVICES AD8264 Quad 235 MHz DC-Coupled VGA Differential Output Amplifier English products handbook Rev A
The AD8264 from Analog Devices is a quad, DC‑coupled variable‑gain amplifier (VGA) that provides both single‑ended VGA output and a differential output buffer. It operates from a single supply of +2.5 V to +5 V and offers a gain range of 6 dB to 30 dB with linear‑in‑dB scaling of 20 dB/V.
Designed for applications such as multichannel data acquisition, PET imaging, ultrasound, and radar receivers, the device features low voltage‑noise (2.3 nV/√Hz) and low current‑noise (2 pA/√Hz), a small‑signal bandwidth of 235 MHz (VGA) and 80 MHz (differential), and a low power consumption of about 140 mW per channel at 3.3 V.
Analog Devices AD8264 specifications
| Gain range | 6 dB to 30 dB |
|---|---|
| Supply Voltage | +2.5 V to +5 V |
| Quiescent Current (Vs=+2.5 V) | 65 mA typical |
| Power Dissipation (Vs=+2.5 V) | 395 mW |
| Input Voltage Noise | 2.3 nV/√Hz |
| Input Current Noise | 2 pA/√Hz |
| Gain scaling factor | 20 dB/V |
| Operating Temperature Range | –40 °C to +105 °C |
Source: Analog Devices AD8264 Datasheet
All Analog Devices AD8264 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the AD8264?
The AD8264 operates from +2.5 V to +5 V.
How many channels does the AD8264 have?
It is a 4‑channel variable gain amplifier.
