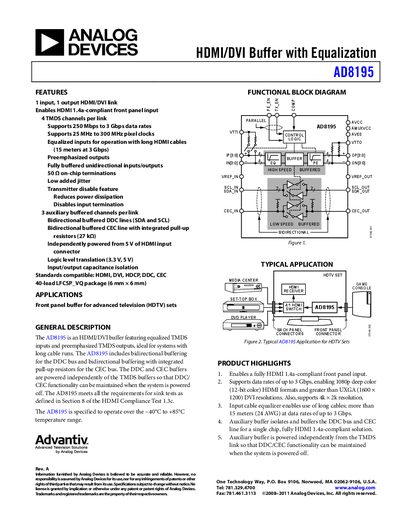

Analog Devices AD8195 HDMI/DVI Buffer Datasheet
The AD8195 is an HDMI/DVI buffer with equalized TMDS inputs and pre‑emphasized outputs, designed for long‑cable HDMI applications. It provides a fully HDMI 1.4a‑compliant front‑panel input, supports data rates up to 3 Gbps, and includes bidirectional buffering for DDC and CEC lines.
The document includes functional block diagrams, typical application examples, detailed electrical specifications, absolute maximum ratings, thermal data, pin descriptions, and ordering information for the 40‑lead LFCSP_VQ package.
Analog Devices AD8195 specifications
| Maximum Data Rate per Channel | 3 Gbps |
|---|---|
| Input Voltage Swing Differential | 150‑1200 mV |
| Rise/Fall Time (20%‑80%) at 3 Gbps | 50‑150 ps |
| AVCC Operating Range | 3 V – 3.6 V |
| Package | 40‑lead LFCSP_VQ (6 mm × 6 mm) |
All Analog Devices AD8195 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the AD8195?
The device operates from –40 °C to +85 °C.
What is the package type of the AD8195?
The AD8195 is supplied in a 40‑lead LFCSP_VQ package measuring 6 mm × 6 mm.
What data rate does the AD8195 support?
It supports up to 2.25 Gbps per channel, enabling 1080p deep‑color HDMI formats.
What is the operating temperature range of the AD8195?
The device operates from –40 °C to +85 °C.
