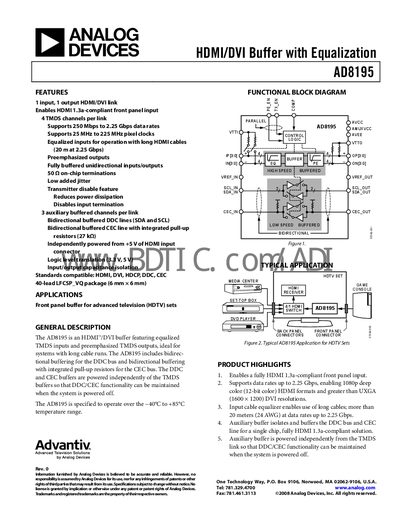

The HDMI/DVI buffer with equalization AD8195 Rev. 0 is a product that supports HDMI 1.3a standard. It has 1 input and 1 output HDMI/DVI link. It supports 4 TMDS channels with data rates ranging from 250 Mbps to 2.25 Gbps and pixel clocks ranging from 25 MHz to 225 MHz. The product also has equalized inputs for operation with long HDMI cables (20 m at 2.25 Gbps), preemphasized outputs, fully buffered unidirectional inputs/outputs, 50 Ω on-chip terminations, low added jitter, and transmitter disable feature. Additionally, the product has 3 auxiliary buffered channels, bidirectional buffered DDC lines, and bidirectional buffered CEC line with integrated pull-up resistors (27 kΩ). It is independently powered from the +5 V of the HDMI input connector, supports logic level translation (3.3 V, 5 V), and is compatible with standards such as HDMI, DVI, HDCP, DDC, CEC.
The AD8195 HDMI/DVI buffer provides a fully HDMI 1.3a‑compliant front‑panel input with support for data rates up to 2.25 Gbps, enabling 1080p deep‑color and high‑resolution DVI formats. It features equalized TMDS inputs, pre‑emphasized outputs, and bidirectional buffering for DDC and CEC lines, which remain powered independently of the TMDS buffers.
Designed for use in advanced television sets, DVD players, and other HDMI/DVI systems, the device operates over a –40 °C to +85 °C temperature range and includes on‑chip terminations, auxiliary buffered channels, and a 40‑lead LFCSP package with an exposed thermal pad.
| Maximum Data Rate per Channel (NRZ) | 2.25 Gbps |
|---|---|
| Input Voltage Swing (Differential) | 150 mV – 1200 mV |
| AVCC Operating Range | 3.0 V – 3.6 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Number of HDMI/DVI Channels | 1 input, 1 output (4 TMDS channels per link) |
It supports up to 2.25 Gbps per channel, enabling 1080p deep‑color HDMI formats.
The device operates from –40 °C to +85 °C.
It provides one HDMI/DVI input and one output, each carrying four TMDS channels.
