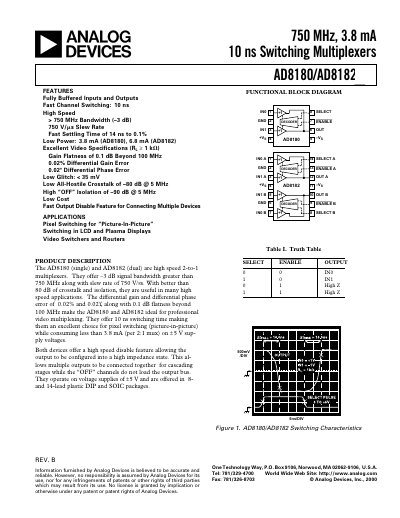

Analog Devices AD8180/AD8182 High Speed 2‑to‑1 Multiplexer Datasheet
The AD8180 (single) and AD8182 (dual) are high‑speed 2‑to‑1 multiplexers designed for video applications such as pixel‑switching, picture‑in‑picture and video routing. They operate from a –5 V supply, offer low power consumption (3.8 mA per active channel for AD8180, 6.8 mA for AD8182) and feature a fast disable function that allows multiple devices to be paralleled.
Key performance figures include a >750 MHz –3 dB bandwidth, 10 ns channel‑to‑channel switching time, 750 V/µs slew rate, and excellent video specifications such as <35 mV glitch, –80 dB crosstalk and –90 dB OFF isolation. The datasheet also provides layout guidelines, typical performance curves, and an ordering guide for various DIP and SOIC packages.
Analog Devices AD8180 specifications
| Channel Switching Time | 10 ns |
|---|---|
| Slew Rate | 750 V/µs |
| Quiescent Current (all channels ON) | 3.8 mA (AD8180), 6.8 mA (AD8182) |
| Supply Voltage Range | –5 V |
| Operating Temperature Range | –40 °C to +85 °C |
Source: Analog Devices AD8180/AD8182 High Speed 2‑to‑1 Multiplexer Datasheet
All Analog Devices AD8180 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the channel switching time of the AD8180/AD8182?
The devices switch between channels in 10 ns.
From: Analog Devices AD8180/AD8182 High Speed 2‑to‑1 Multiplexer Datasheet
How much power does each active channel consume?
Each active channel draws 3.8 mA for the AD8180 and 6.8 mA for the AD8182.
From: Analog Devices AD8180/AD8182 High Speed 2‑to‑1 Multiplexer Datasheet
What supply voltage range do the multiplexers require?
They operate from a +5 V supply with an allowed range of +4 V to +6 V.
From: Analog Devices AD8180/AD8182 Switching Multiplexer Datasheet
How much off‑isolation does the device provide?
The off‑isolation is specified as –90 dB at 5 MHz.
From: Analog Devices AD8180/AD8182 Switching Multiplexer Datasheet
