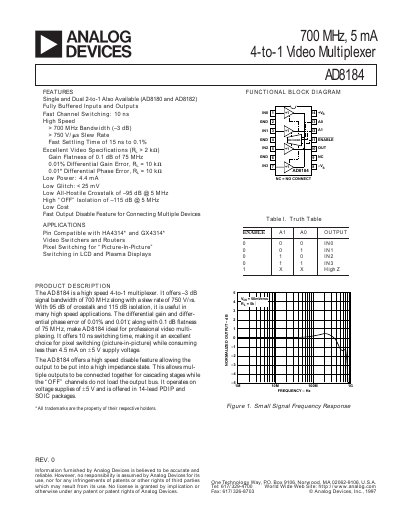

Analog Devices AD8184 Video Multiplexer Datasheet
The AD8184 video multiplexer provides a high‑speed 4‑to‑1 switching solution for professional video applications. It offers a –3 dB bandwidth of 700 MHz, a slew rate of 750 V/µs, and a channel‑to‑channel switching time of 10 ns, while consuming less than 4.5 mA from a ±5 V supply. The device includes a fast disable feature that places the output in a high‑impedance state, allowing multiple muxes to be cascaded.
The part is supplied in 14‑lead PDIP and SOIC packages and includes specifications such as –95 dB crosstalk, –115 dB OFF isolation, and low power dissipation. Layout guidelines emphasize short signal traces, proper grounding, and the use of surface‑mount bypass capacitors to maintain performance at high frequencies.
Analog Devices AD8184 specifications
| -3 dB Bandwidth (Small Signal) | 700 MHz |
|---|---|
| Slew Rate | 750 V/µs |
| Channel Switching Time (50%→90%) | 10 ns |
| Power Consumption (Enabled) | < 4.5 mA |
| Supply Voltage Range | ±5 V |
| Package Options | 14‑lead PDIP and SOIC |
| Input Resistance | 1.0 – 2.4 MΩ |
All Analog Devices AD8184 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the switching time of the AD8184?
The AD8184 switches between channels in about 10 ns (50 % to 90 % transition).
What supply voltage does the AD8184 require?
The device operates from a ±5 V supply.
What is the channel switching time of the AD8184?
The AD8184 switches from 50 % to 90 % of the output in about 10 ns.
What voltage range can the AD8184 operate from?
The device operates from a supply voltage of +4 V to +6 V.
