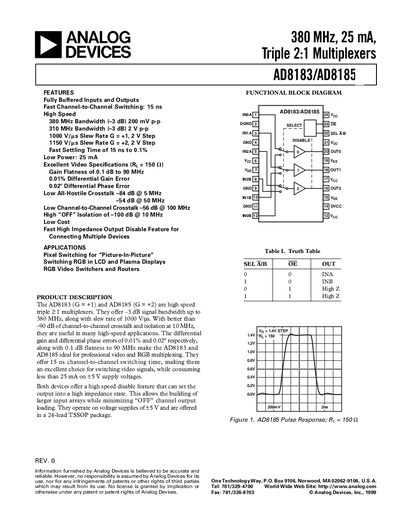

Analog Devices AD8183/AD8185 Datasheet
The AD8183 (G = +1) and AD8185 (G = +2) are high‑speed triple 2:1 multiplexers offering up to 380 MHz –3 dB bandwidth, 1000 V/µs slew rate and 15 ns channel‑to‑channel switching. They feature low crosstalk (‑84 dB @ 5 MHz) and high OFF isolation (‑100 dB @ 10 MHz), making them suitable for professional video, RGB switching, and picture‑in‑picture applications.
Both devices operate from a +5 V supply, consume less than 25 mA, and are available in a 24‑lead plastic TSSOP (RU‑24) package. The datasheet includes detailed electrical specifications, absolute maximum ratings, pin configuration, and layout dimensions.
Analog Devices AD8185 specifications
| Small‑signal –3 dB Bandwidth (200 mV p‑p) | 380 MHz |
|---|---|
| Slew Rate (2 V step) | 1000 V/µs (G=+1) / 1150 V/µs (G=+2) |
| Settling Time to 0.1 % (2 V step) | 15 ns |
| Power Consumption (All channels ON) | 25 mA |
| OFF Isolation (10 MHz) | -100 dB |
| Package | 24‑lead plastic TSSOP (RU‑24) |
All Analog Devices AD8185 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the channel‑to‑channel switching time of the AD8183/AD8185?
The devices switch channels in 15 ns, providing fast channel‑to‑channel switching.
What is the maximum OFF isolation performance?
The OFF isolation is –100 dB at 10 MHz.
What is the -3 dB bandwidth of the AD8183/AD8185 for a small‑signal input?
The device provides a 380 MHz -3 dB bandwidth for a 200 mV p‑p small‑signal input.
What supply voltage range does the AD8183/AD8185 operate from?
The devices operate from 4.5 V to 5.5 V supply voltage.
