The AD8143 is a high-speed, triple differential receiver with comparators. It features high speed bandwidth, high common mode rejection ratio, wide input impedance, adjustable gain, etc.

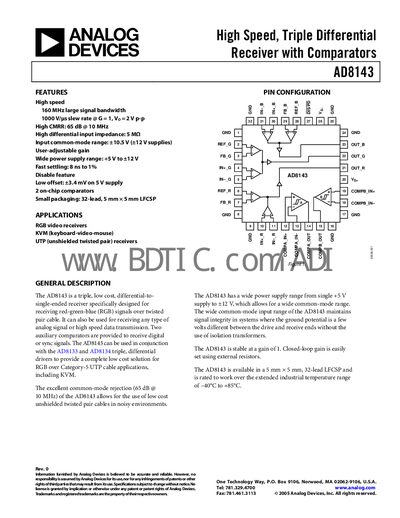

The AD8143 is a high‑speed, triple differential‑to‑single‑ended receiver designed for RGB video and other high‑speed data over unshielded twisted‑pair cables. It includes two on‑chip comparators for digital or sync signals and can be paired with AD8133/AD8134 drivers for complete RGB‑over‑UTP solutions.
Key features include a 160 MHz 3‑dB bandwidth, 1000 V/µs slew rate, 8 ns 1 % settling time, 65 dB CMRR at 10 MHz, and a wide supply range of +5 V to +12 V. The device is offered in a 32‑lead LFCSP package and operates from –40 °C to +85 °C.
| Slew Rate | 1000 V/µs (2 V p‑p, 1 kΩ load) |
|---|---|
| Settling Time (1 %) | 8 ns (2 V p‑p output) |
| Input Offset Voltage | Typical 43 mV |
| Common‑Mode Rejection Ratio | 65 dB at 10 MHz |
| Supply Voltage Range | +5 V to +12 V |
| Quiescent Current (Positive Supply) | Typical 57.5 mA |
| Output Current | 40 mA |
The device operates from a single supply of +5 V up to +12 V.
Typical quiescent current on the positive supply is about 57.5 mA.
The typical input offset voltage is 43 mV.
