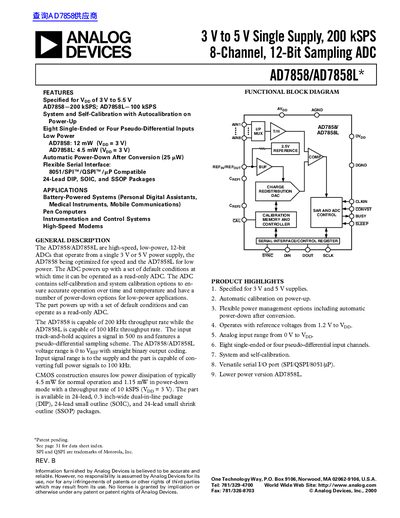

Analog Devices AD7858/AD7858L Sampling ADC Datasheet
The AD7858 and AD7858L are high‑speed, low‑power 12‑bit analog‑to‑digital converters that operate from a single 3 V to 5.5 V supply. The AD7858 is optimized for speed (200 kSPS) while the AD785L version targets low power consumption.
The device offers eight single‑ended or four pseudo‑differential inputs, flexible serial interfaces (SPI, QSPI, 8051), automatic self‑calibration on power‑up, and multiple power‑down modes. It is available in 24‑lead DIP, SOIC, and SSOP packages.
Analog Devices AD7858 specifications
| Supply Voltage | 3 V to 5.5 V |
|---|---|
| Sampling Rate (AD7858) | 200 kSPS |
| Sampling Rate (AD7858L) | 100 kSPS |
| Resolution | 12 bits |
| Power Consumption (AD7858) | 12 mW (VDD = 3 V) |
| Power Consumption (AD7858L) | 4.5 mW (VDD = 3 V) |
| Input Channels | 8 single‑ended or 4 pseudo‑differential |
| Package Options | 24‑lead DIP, SOIC, SSOP |
Source: Analog Devices AD7858/AD7858L Sampling ADC Datasheet
All Analog Devices AD7858 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7858?
The AD7858 can sample at up to 200 kSPS.
Which version of the device is optimized for low power?
The AD7858L is the low‑power version of the ADC.
What is the maximum sampling rate of the AD7858 and AD7858L?
The AD7858 can sample at up to 200 kSPS, while the low‑power AD7858L supports up to 100 kSPS.
How much power does the AD7858 consume at a 3 V supply?
At 3 V, the AD7858 consumes about 12 mW, whereas the AD7858L uses about 4.5 mW.
What supply voltage range does the AD7858 support?
It operates from 3.0 V to 5.5 V supply voltage.
What is the maximum sampling rate of the AD7858 and AD7858L?
The AD7858 can sample at up to 200 kSPS, while the low‑power AD7858L reaches up to 100 kSPS.
