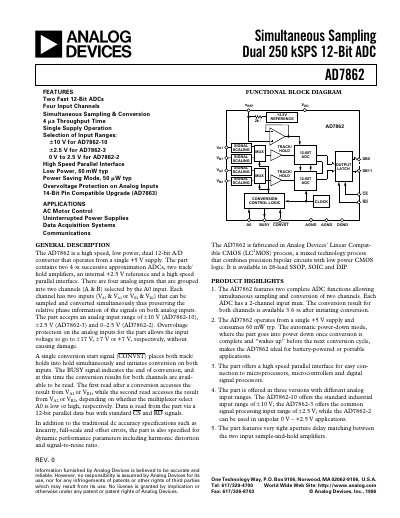

Analog Devices AD7862 Dual 12‑Bit ADC Datasheet
The AD7862 from Analog Devices is a high‑speed, low‑power dual 12‑bit analog‑to‑digital converter that operates from a single +5 V supply. It contains two 4 µs successive‑approximation ADCs, two track‑hold amplifiers, an internal +2.5 V reference and a high‑speed parallel interface. Four analog inputs are grouped into two channels (A & B) and can be sampled simultaneously, preserving phase information.
The device offers selectable input ranges (±10 V, ±2.5 V, 0‑2.5 V), over‑voltage protection, a conversion time of 3.6 µs in high‑sampling mode, and a typical power consumption of 60 mW. It is available in 28‑lead SSOP, SOIC and DIP packages and includes features such as automatic power‑down mode and tight aperture‑delay matching.
Analog Devices AD7862 specifications
| Resolution | 12 Bits |
|---|---|
| Small‑Signal Bandwidth | 3 MHz (typ) |
| Aperture Delay | 20 ns (typ) |
| Power Dissipation (Normal Mode) | 75 mW max, typically 60 mW |
| Conversion Time (Both Channels) | 3.6 µs max |
Source: Analog Devices AD7862 Datasheet
All Analog Devices AD7862 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical power consumption of the AD7862?
In normal mode the device typically consumes about 60 mW, with a maximum of 75 mW.
What is the conversion time for both channels?
The conversion time for both channels is specified as up to 3.6 µs.
