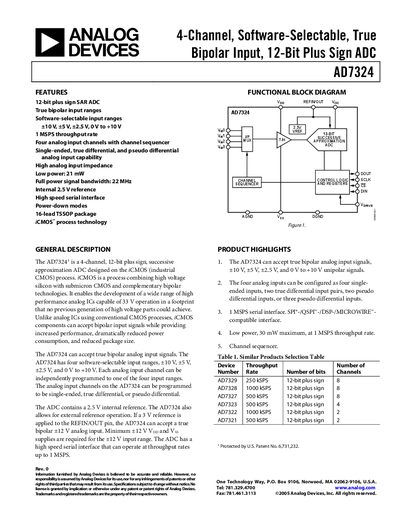

Analog Devices AD7324 Datasheet
The AD7324 is a 4‑channel, 12‑bit plus sign successive‑approximation ADC designed on an iCMOS process. It supports true bipolar input signals and offers four software‑selectable input ranges (+10 V, +5 V, +2.5 V, and 0 V to +10 V). The device features a high‑speed serial interface compatible with SPI, QSPI, DSP and Microwire protocols, and provides a channel sequencer for flexible sampling.
Key specifications include a 13‑bit resolution, 1 MSPS maximum throughput, 22 MHz full‑power bandwidth, and a normal‑mode power dissipation of 30 mW. The ADC is supplied in a 16‑lead TSSOP package and operates over a temperature range of –40 °C to +85 °C. Detailed timing, absolute‑maximum ratings, and power‑down modes are provided for system designers.
Analog Devices AD7324 specifications
| Resolution | 13 bits |
|---|---|
| Maximum Throughput Rate | 1 MSPS |
| Full Power Bandwidth | 22 MHz (3 dB) |
| Power Dissipation (Normal Mode, Operational) | 30 mW |
Source: Analog Devices AD7324 Datasheet
All Analog Devices AD7324 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7324?
The AD7324 can operate at up to 1 MSPS throughput rate.
How much power does the AD7324 consume in normal operation?
In normal operational mode the device dissipates about 30 mW.
What is the maximum sampling rate of the AD7324?
The AD7324 can operate at a throughput rate of up to 1 MSPS.
How many analog input channels does the AD7324 provide?
The device has four analog input channels with a channel sequencer.
What is the maximum sampling rate of the AD7324?
The AD7324 can operate at up to 1 MSPS throughput rate.
Which input voltage ranges can be selected on the AD7324?
Four software‑selectable ranges are available: +10 V, +5 V, +2.5 V, and 0 V to +10 V.
