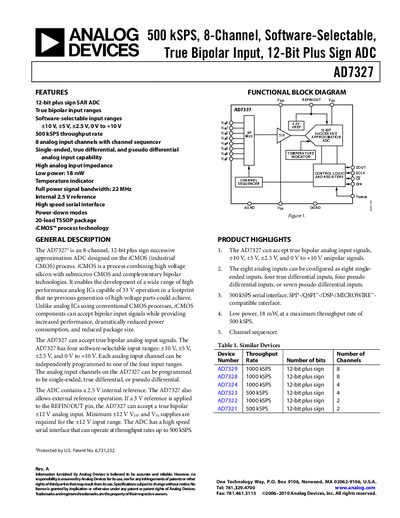

Analog Devices AD7327 Datasheet Rev A
The AD7327 is an 8‑channel, 12‑bit plus sign successive‑approximation ADC designed on iCMOS technology. It accepts true bipolar analog inputs and offers four software‑selectable input ranges (+10 V, +5 V, +2.5 V, and 0 V to +10 V). Each channel can be programmed for single‑ended, true differential, or pseudo‑differential operation.
Key features include a 500 kSPS serial interface, low 18 mW power consumption in normal mode, a full‑power bandwidth of 22 MHz, and a 20‑lead TSSOP package. The device provides extensive timing specifications, multiple power‑down modes, and an internal 2.5 V reference.
Analog Devices AD7327 specifications
| Resolution | 13 Bits |
|---|---|
| Throughput Rate | 500 kSPS |
| Power Consumption (Normal Mode) | 18 mW |
| Full Power Bandwidth | 22 MHz |
| Input Voltage Ranges | +10 V, +5 V, +2.5 V, 0 V to +10 V |
| Number of Analog Input Channels | 8 |
| Package | 20‑lead TSSOP |
