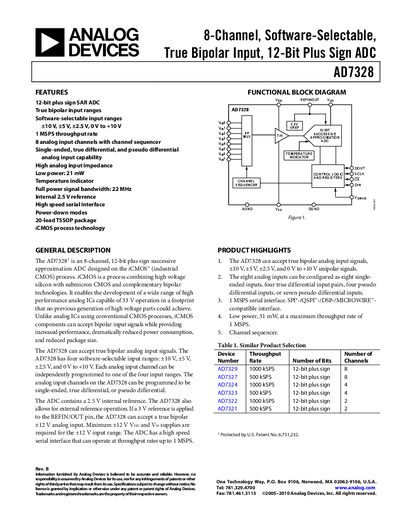

Analog Devices AD7328 8‑Channel 12‑Bit ADC Datasheet
The AD7328 from Analog Devices is an 8‑channel, 12‑bit plus‑sign successive‑approximation ADC designed on iCMOS technology. It offers true bipolar input ranges (+10 V, +5 V, +2.5 V, 0 V‑to‑+10 V) and can be programmed per channel for single‑ended, true differential, or pseudo‑differential operation.
The device includes an internal 2.5 V reference (or external reference option), a high‑speed serial interface compatible with SPI/QSPI/DSP/MICROWIRE, and low power consumption (31 mW in normal mode). Detailed specifications, pin configurations, timing diagrams, and absolute maximum ratings are provided.
Analog Devices AD7328 specifications
| Maximum Throughput Rate | 1 MSPS |
|---|---|
| Full Power Bandwidth | 22 MHz |
| Power Consumption (Normal Mode) | 30 mW |
| Input Voltage Ranges | +10 V, +5 V, +2.5 V, 0 V to +10 V |
| Package | 20‑lead TSSOP |
Source: Analog Devices AD7328 8-Channel 12-Bit Plus Sign ADC Datasheet
All Analog Devices AD7328 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7328?
The AD7328 can operate at up to 1 MSPS throughput rate.
From: Analog Devices AD7328 8-Channel 12-Bit Plus Sign ADC Datasheet
How many analog input channels does the AD7328 provide?
It provides eight analog input channels.
From: Analog Devices AD7328 8-Channel 12-Bit Plus Sign ADC Datasheet
