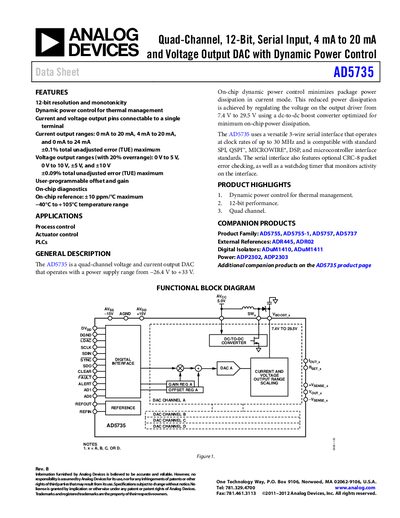

Analog Devices AD5735 Quad-Channel 12-Bit DAC Data Sheet
The AD5735 DAC provides four independent channels that can output either voltage or current. It operates from a power‑supply range of –26.4 V to +33 V and features on‑chip dynamic power control to minimize dissipation. The device uses a 3‑wire serial interface compatible with SPI, QSPI, Microwire and other standards, with optional CRC‑8 error checking and a watchdog timer.
The datasheet includes detailed specifications for voltage and current output ranges, resolution, accuracy, timing, and layout guidelines. It also describes companion products, functional block diagrams, and recommended PCB design practices for low‑noise operation and galvanic isolation.
Analog Devices AD5735 specifications
| Resolution | 12 Bits |
|---|---|
| Output Voltage Ranges | 0‑5 V, 0‑10 V, –5 to +5 V, –10 to +10 V, 0‑6 V, 0‑12 V, –6 to +6 V, –12 to +12 V |
| Total Unadjusted Error (Voltage) | +0.012 % FSR (typical) |
| Current Output Range | 0‑24 mA (also 0‑20 mA, 4‑20 mA) |
| Power‑Supply Range | –26.4 V to +33 V |
Source: Analog Devices AD5735 Quad-Channel 12-Bit DAC Data Sheet
All Analog Devices AD5735 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD5735?
The AD5735 provides 12‑bit resolution for both voltage and current output modes.
From: Analog Devices AD5735 Quad-Channel 12-Bit DAC Data Sheet
What voltage output ranges does the AD5735 support?
It supports multiple voltage ranges including 0‑5 V, 0‑10 V, –5 to +5 V, –10 to +10 V, 0‑6 V, 0‑12 V, –6 to +6 V, and –12 to +12 V.
From: Analog Devices AD5735 Quad-Channel 12-Bit DAC Data Sheet
What serial interface does the AD5735 use?
It uses a versatile 3‑wire serial interface compatible with SPI, QSPI, Microwire, DSP and other microcontroller standards, supporting up to 30 MHz clock rates and optional CRC‑8 error checking.
How does the AD5735 reduce power dissipation?
On‑chip dynamic power control regulates the output driver voltage via a de‑to‑de boost converter, minimizing package power dissipation.
