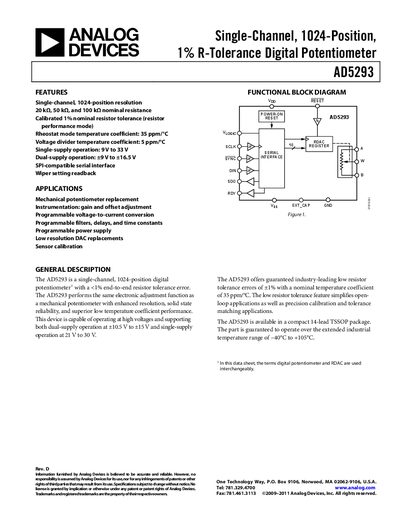

Analog Devices AD5293 Digital Potentiometer Datasheet
The AD5293 is a single‑channel, 1024‑position digital potentiometer that offers a calibrated 1 % nominal resistor tolerance and low temperature‑coefficient performance. It operates from 9 V to 33 V on a single supply or +9 V to +16.5 V on dual supplies and is available in a compact 14‑lead TSSOP package.
Typical applications include replacing mechanical potentiometers, gain and offset adjustment in instrumentation, programmable voltage‑to‑current conversion, audio volume control, and high‑voltage DAC functions. Ordering information and package options are listed at the end of the document.
Analog Devices AD5293 specifications
| Resolution | 10 bits (1024 positions) |
|---|---|
| Resistor tolerance | ±1 % (performance mode) |
| Temperature coefficient (rheostat mode) | 35 ppm/°C |
| Single‑supply voltage range | 9 V to 33 V |
| Dual‑supply voltage range | +9 V to +16.5 V |
| Package | 14‑lead TSSOP (RU‑14) |
Source: Analog Devices AD5293 Digital Potentiometer Datasheet
All Analog Devices AD5293 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the AD5293?
The AD5293 can operate from 9 V up to 33 V on a single supply.
How many positions does the AD5293 provide?
It provides 1024 discrete positions, corresponding to a 10‑bit resolution.
What is the supply voltage range for the AD5293?
The AD5293 can be powered from a single supply of +21 V to +30 V or from dual supplies of +10.5 V to +15 V.
How many positions does the AD5293 provide?
The device offers 1024 discrete positions for the wiper.
