Featured diode manuals

Infineon D2520N IFBIP D Rectifier Diode Datasheet

Datasheet 8 pages · 260 KB · DE

The D2520N IFBIP D is a high‑power rectifier diode. This datasheet lists its electrical ratings, thermal characteristics, mechanical dimensions and transient thermal impedance for various cooling configurations.

Key parameters include a maximum reverse voltage of 2200 V, surge current up to 41 kA, junction‑to‑case thermal resistance of 0.022 °C/W, and a maximum junction temperature of 175 °C. Mechanical data such as a 25 mm creepage distance, 520 g weight and a clamping force of 15–24 kN are also provided. This manual is written in German.

Covers: Electrical Properties · Thermal Properties · Mechanical Properties · Transient Thermal Impedance · Diagrams · On-state Power Loss

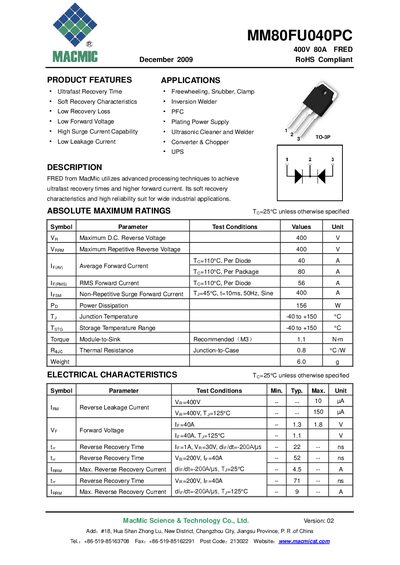

MacMic MM80FU040PC FRED Diode Datasheet

Datasheet 3 pages · 362 KB · EN

The MM80FU040PC is a Fast Recovery Epitaxial Diode (FRED) designed for ultrafast recovery, low forward voltage, and high surge current capability. It is suitable for applications such as free‑wheeling, snubber, clamp circuits, inverter welders, PFC, plating power supplies, ultrasonic cleaners, converters, choppers, and UPS systems.

The datasheet lists absolute maximum ratings (400 V reverse voltage, 40 A average forward current, 156 W power dissipation), electrical characteristics (forward voltage 1.1 V at 40 A, reverse leakage up to 150 µA), thermal data (θJC 0.8 °C/W, junction temperature range –40 °C to +150 °C), and dynamic parameters such as reverse recovery time (22 ns typical). Package dimensions and a test circuit are also provided.

Covers: Applications · Product Features · Absolute Maximum Ratings · Electrical Characteristics · Thermal Characteristics · Dynamic Parameters

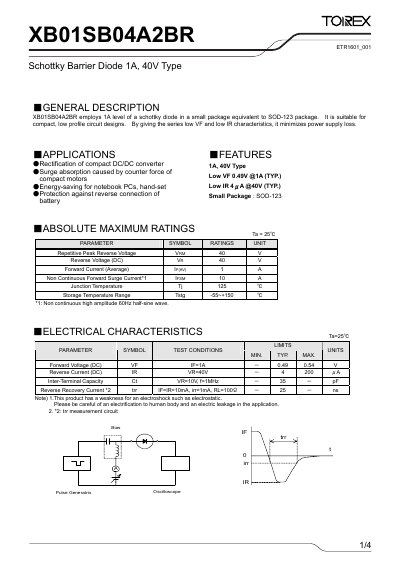

Torex XB01SB04A2BR Schottky Barrier Diode Datasheet

Datasheet 4 pages · 113 KB · ZH

The XB01SB04A2BR is a 1 A, 40 V Schottky barrier diode offered by Torex Semiconductor. It is housed in a compact SOD‑123 package, making it suitable for low‑profile circuit designs such as DC‑DC converters, notebook PCs, and motor surge protection.

The datasheet lists key electrical parameters, absolute maximum ratings, and typical performance curves. It also includes marking rules, packaging information, and application guidance to help designers integrate the diode safely within the specified limits. This manual is written in Chinese.

Covers: General Description · Electrical Characteristics · Absolute Maximum Ratings · Features · Typical Performance Characteristics · Marking Rule

Latest diode manuals

• Infineon D2520N IFBIP D Rectifier Diode Datasheet

  Datasheet 8 pages · 260 KB · DE

  Infineon's D2520N IFBIP D rectifier diode datasheet provides electrical, thermal, mechanical specifications and performance data.

• MacMic MM80FU040PC FRED Diode Datasheet

  Datasheet 3 pages · 362 KB · EN

  The MacMic MM80FU040PC FRED diode datasheet provides specifications, ratings, and application information for the 400 V 80 A fast‑recovery diode.

• NXP NUR460P diode

  Ultrafast power diode in a SOD141 (DO-201AD) axial lead plastic package.

• NXP BYV10-600P diode

  Ultrafast power diode in a SOD59 (2-lead TO-220AC) plastic package.

• NXP BZX84_SER diode

  The BZX84 series is a low-power voltage regulator diode produced by Nxp. The package is SOT23 and the rated working voltage range is 2.4V-75V. It has three tolerance ranges: 1%, 2% and 5%.

• NXP BYV10X-600P diode

  Ultrafast power diode in a SOD113 (2-lead TO-220F) plastic package.

• NXP BYC8B-600P diode

  Hyperfast power diode in a SOT404 (D2PAK) surface-mountable plastic package.

• NXP BYC8-600P diode

  Hyperfast power diode in a SOD59 (2-lead TO-220AC) plastic package.

• NXP BYR16W-1200 diode

  Ultrafast power diode in a SOD142 (2-lead TO247) plastic package.

• NXP BYC8X-600P diode

  Hyperfast power diode in a SOD113 (2-lead TO-220F) plastic package.

• NXP BYC30WT-600P diode

  Hyperfast power diode in a SOT429 (3-lead TO247) plastic package.

• NXP BYC20D diode

  Hyperfast power diode in a SOD59 (2-lead TO-220AC) plastic package.

• NXP BYC15-600P diode

  Hyperfast power diode in a SOD59 (2-lead TO-220AC) plastic package.

• NXP BAP70-03 diode

  Planar PIN diode in a SOD323 (SC-76) small SMD plastic package.

• NXP BAP70AM diode

  Four planar PIN diode array in SOT363 small SMD plastic package.
