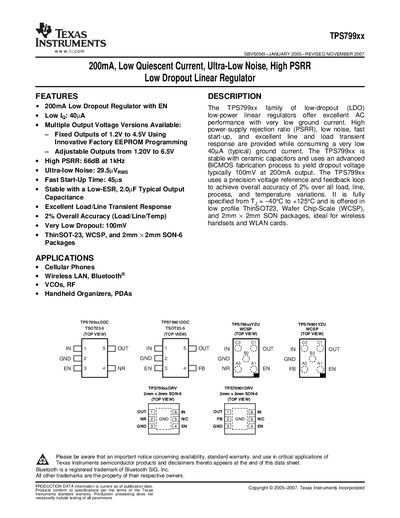

The TPS799xx family is a low-dropout (LDO) low-power linear regulator with excellent AC performance, low noise, high PSRR, and fast start-up time.
The TPS799xx family is a 200 mA low‑dropout linear regulator offering ultra‑low noise (29.5 µV rms) and high PSRR (66 dB at 1 kHz). It provides both fixed (1.2 V‑4.5 V) and adjustable (1.20 V‑6.5 V) output versions with a typical dropout of 100 mV and 2 % overall accuracy.
The devices are supplied in ThinSOT‑23, WCSP, and 2 mm × 2 mm SON‑6 packages and are intended for wireless handsets, WLAN cards, PDAs, and other portable applications. Detailed electrical characteristics, pin descriptions, and layout guidelines are included.
| Quiescent (ground pin) current | 40 µA typ. |
|---|---|
| Dropout voltage | 100 mV typ. |
| Power‑supply rejection ratio (PSRR) | 66 dB at 1 kHz |
| Output noise | 29.5 µV rms |
| Overall accuracy | 2 % (load/line/temp) |
| Package options | ThinSOT‑23, WCSP, 2 mm × 2 mm SON‑6 |
Typical dropout voltage is about 100 mV when delivering 200 mA.
The device is available in ThinSOT‑23, WCSP, and 2 mm × 2 mm SON‑6 packages.
Typical ground pin current is 40 µA.
