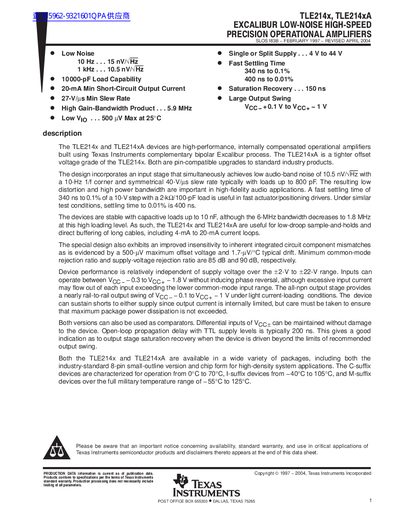

Texas Instruments TLE214x/TLE214xA Operational Amplifiers Data Sheet
The document describes the TLE214x and TLE214xA devices as high-performance, internally compensated operational amplifiers built using Texas Instruments complementary bipolar Excalibur process. These devices feature low audio-band noise, fast settling times, and are stable with capacitive loads up to 10 nF.
Read onlineTexas Instruments TLE214X specifications
| Supply Voltage Range | +2 V to +22 V |
|---|---|
| Low-Frequency Noise (10 Hz) | 15 nV/VHz |
| Settling Time (to 0.1%) | 340 ns |
| Settling Time (to 0.01%) | 400 ns |
| Maximum Offset Voltage | 500 uV |
Source: Texas Instruments TLE214x/TLE214xA Operational Amplifiers Data Sheet
All Texas Instruments TLE214X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum supply voltage?
The devices operate with a supply voltage as low as +2 V.
From: Texas Instruments TLE214x/TLE214xA Operational Amplifiers Data Sheet
Are these amplifiers stable with capacitive loads?
Yes, they are stable with capacitive loads up to 10 nF.
From: Texas Instruments TLE214x/TLE214xA Operational Amplifiers Data Sheet
What is the typical input offset voltage of the TLE214x series?
The typical maximum input offset voltage is 500 µV at 25 °C.
From: Texas Instruments TLE214x/TLE214xA Operational Amplifier Datasheet
What supply voltage range can the TLE214x operate over?
The device operates from +2 V up to +22 V.
From: Texas Instruments TLE214x/TLE214xA Operational Amplifier Datasheet
What is the typical slew rate of the TLE214x amplifiers?
The minimum slew rate is specified as 27 V/µs.
What supply voltage range can the TLE214x devices operate over?
They operate from +2 V up to +22 V supply voltage.
