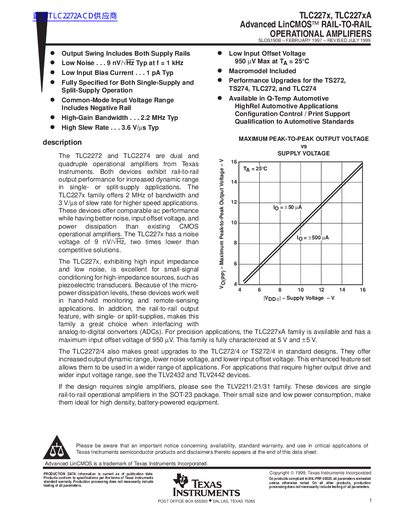

Texas Instruments TLC227x/TLC227xA Operational Amplifiers Data Sheet
The document describes the TLC227x and TLC227xA families of Advanced LinCMOS™ RAIL-TO-RAIL OPERATIONAL AMPLIFIERS. These devices feature low input offset voltage, low noise (9 nV/VHz Typ), and high-gain bandwidth (2.2 MHz Typ). They are designed for both single-supply and split-supply operation with rail-to-rail output swing.
The datasheet provides absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics tables for various package suffixes (C, AC, ID, AQD, etc.). It also includes pin configuration diagrams and notes on production data and standard warranty.
Texas Instruments TLC227X specifications
| Noise Voltage | 9 nV/VHz Typ at f = 1 kHz |
|---|---|
| Input Bias Current | 1 pA Typ |
| High-Gain Bandwidth | 2.2 MHz Typ |
| Slew Rate | 3.6 V/us Typ |
| Operating Temperature Range (C Suffix) | 0°C to 70°C |
Source: Texas Instruments TLC227x/TLC227xA Operational Amplifiers Data Sheet
All Texas Instruments TLC227X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical noise voltage of the TLC227x?
The typical noise voltage is 9 nV/VHz at f = 1 kHz.
From: Texas Instruments TLC227x/TLC227xA Operational Amplifiers Data Sheet
What is the maximum output swing capability?
The devices exhibit rail-to-rail output performance, including both supply rails.
From: Texas Instruments TLC227x/TLC227xA Operational Amplifiers Data Sheet
What is the maximum supply voltage for the TLC2272/TLC2274?
The devices can be powered from ±8 V supply rails.
What is the input offset voltage specification?
The maximum input offset voltage is 950 µV at 25 °C.
What is the typical supply voltage range for the TLC227x?
The typical supply voltage range is 2.2 V to 8 V.
What is the typical noise performance of the TLC227x?
The device has a typical noise voltage of 9 nV/√Hz at 1 kHz.
