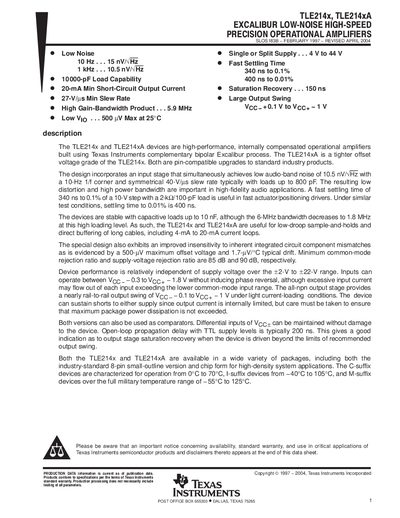

The TLE214x and TLE214xA devices are high-performance, internally compensated operational amplifiers built using Texas Instruments complementary bipolar Excalibur process. The TLE214xA is a tighter offset voltage grade of the TLE214x. Both are pin-compatible upgrades to standard industry products. The design incorporates an input stage that simultaneously achieves low audio-band noise of 10.5 nV/√Hz with a 10-Hz 1/f corner and symmetrical 40-V/µs slew rate typically with loads up to 800 pF. The resulting low distortion and high power bandwidth are important in high-fidelity audio applications. A fast settling time of 340 ns to 0.1% of a 10-V step with a 2-kΩ/100-pF load is useful in fast actuator/positioning drivers. Under similar test conditions, settling time to 0.01% is 400 ns. The devices are stable with capacitive loads up to 10 nF, although the 6-MHz bandwidth decreases to 1.8 MHz at
The TLE214x and TLE214xA devices are high‑performance, internally compensated operational amplifiers built on Texas Instruments' Excalibur bipolar process. They offer very low audio‑band noise, fast settling, and high gain‑bandwidth, making them suitable for high‑fidelity audio, sample‑and‑hold, and long‑cable buffering applications.
The datasheet provides electrical characteristics, absolute maximum ratings, recommended operating conditions, and mechanical dimensions for a variety of package types (SO, DIP, PW, etc.). It also includes a notice on product availability, warranty, and legal terms.
| Input noise (1 kHz) | 10.5 nV/√Hz |
|---|---|
| Slew rate | 27 V/µs |
| Gain‑bandwidth product | 5.9 MHz |
| Input offset voltage (max) | 500 µV at 25 °C |
| Supply voltage range | +2 V to +22 V |
| Minimum short‑circuit output current | 20 mA |
The typical maximum input offset voltage is 500 µV at 25 °C.
The device operates from +2 V up to +22 V.
The minimum slew rate is 27 V/µs.
The gain‑bandwidth product is 5.9 MHz.
