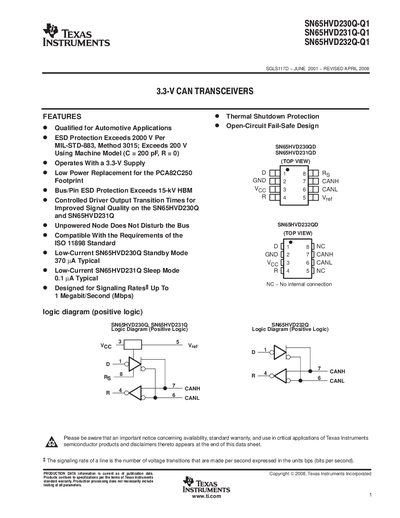

This document describes the features and characteristics of the SGLS117D product. It is qualified for automotive applications and has ESD protection exceeding 2000V. It operates with a 3.3V supply and can be used as a low power replacement for the PCA82C250 footprint. It is compatible with the ISO 11898 standard and has low standby and sleep mode currents. The product is designed for signaling rates up to 1Mbps and has thermal shutdown protection and an open-circuit fail-safe design.
The SN65HVD230Q, SN65HVD231Q, and SN65HVD232Q are controller‑area‑network (CAN) transceivers designed for use with 3.3‑V DSPs or equivalent CAN controllers. They meet ISO 11898 requirements and are qualified for automotive applications, making them suitable for industrial, building‑automation, and automotive environments.
Key features include thermal‑shutdown protection, ESD protection exceeding 15 kV HBM, low‑power standby (370 µA) and sleep (0.1 µA) modes, and operation over a –2 V to 7 V common‑mode bus range. Electrical specifications such as supply voltage, propagation delays, and output drive currents are detailed for design integration.
| Supply voltage (VCC) | 3.0 V – 3.6 V (typical 3.3 V) |
|---|---|
| Maximum signaling rate | 1 Mbps |
| ESD protection (bus pins) | 15 kV HBM |
| Common‑mode voltage range (bus) | -2 V to 7 V |
| Automotive qualification | Qualified for automotive applications |
They support signaling rates up to 1 Mbps.
