SN65HVD230, SN65HVD231, SN65HVD232 are CAN transceivers produced by TI company, with low power consumption, high input impedance, support 120 nodes, compatible with ISO 11898 standard and other features

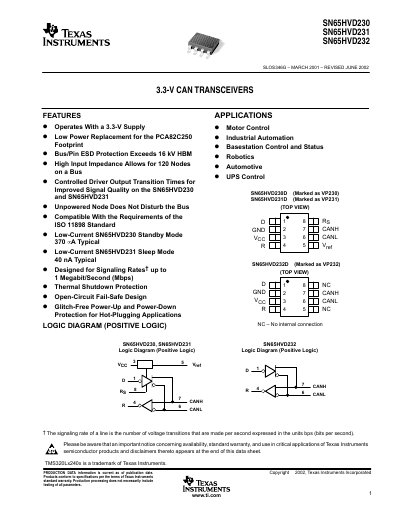

The SN65HVD230, SN65HVD231, and SN65HVD232 are 3.3‑V CAN transceivers designed for use with TI DSPs or equivalent CAN controllers. They provide differential transmit and receive capability up to 1 Mbps, low‑power standby or sleep modes, and a range of protection features such as ESD, over‑temperature and open‑circuit fail‑safe designs.
Key specifications include a supply voltage range of –0.3 V to 6 V, a common‑mode bus range of –4 V to 16 V, standby current of 370 µA (SN65HVD230) and sleep current of 40 nA (SN65HVD231), and operating temperature from –40 °C to 85 °C. The devices are suited for motor control, industrial automation, automotive, robotics and UPS control applications.
| Supply voltage range (VCC) | –0.3 V to 6 V |
|---|---|
| Common‑mode bus voltage range | –4 V to 16 V |
| Standby current (SN65HVD230) | 370 µA typical |
| Sleep current (SN65HVD231) | 40 nA typical |
| Maximum signaling rate | 1 Mbps |
| High‑level output current | –40 mA |
| Low‑level output current | 48 mA |
| Operating temperature range | –40 °C to 85 °C |
The SN65HVD230 has a typical standby current of 370 µA.
The SN65HVD231 draws a typical sleep current of 40 nA.
They support signaling rates up to 1 Mbps.
They include bus/pin ESD protection exceeding 16 kV HBM, thermal shutdown protection, and an open‑circuit fail‑safe design.
