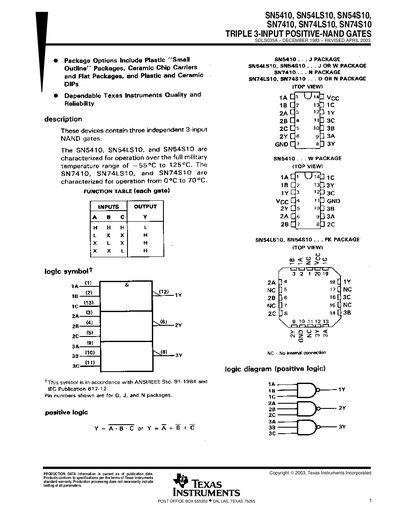

Texas Instruments SN5410 SN54LS10 SN54S10 Triple 3‑Input NAND Gate Datasheet

This is a datasheet for SN5410, SN54LS10, SN54S10, SN7410, SN74LS10, SN74S10 triple 3-input positive-NAND gates

Brand: Texas Instruments
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 15
File format: PDF
File size: 586 KB
Published: 07 May, 2012
Updated: 30 September, 2023
Models: SN5410, SN54LS10
MD5 checksum: CF72ABD70A71BAD0768E5C564B9636A7
PDF: Texas Instruments SN5410 SN54LS10 SN54S10 Triple 3‑Input NAND Gate Datasheet PDF

About this manual

This Texas Instruments datasheet describes the SN5410, SN54LS10 and SN54S10 devices, which are triple 3‑input positive‑NAND gates. It provides detailed electrical characteristics, recommended operating conditions, and package options for each part.

The document also includes a package‑option addendum, mechanical drawings for the various packages, and legal notices covering warranty, RoHS compliance and usage restrictions.

What's inside

Introduction
Package Options
Recommended Operating Conditions
Electrical Characteristics
Package Option Addendum
Package Drawings
Important Notice
Legal Disclaimer

Specifications

High‑level input voltage (VIH)	2 V
High‑level output current (IOH)	-0.4 mA
Low‑level output current (IOL)	4 mA to 8 mA
Package types	J, D, N, W, FK, CDIP, CFP, SOIC, PDIP, LOCC

Frequently asked questions

Which package options are offered for the SN54LS10?

The SN54LS10 is available in J, D, N, W and FK packages, including CDIP, CFP, SOIC and PDIP variants.
