TIBPAL20L8-10C, TIBPAL20R4-10C, TIBPAL20R6-10C, TIBPAL20R8-10C are Texas Instruments' high-performance IMPACT-X PAL circuits. They feature high speed and functional equivalency when compared with currently available devices. These IMPACT-X circuits combine low power consumption, small size and high speed.

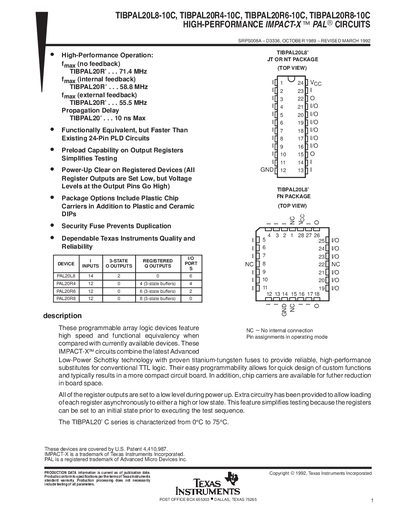

The TIBPAL20 series PAL devices are high‑performance IMPACT‑X™ logic circuits offering fast operation, preload capability on output registers, and power‑up clear of registered outputs. The handbook provides functional block diagrams, pin‑assignment tables for JT and NT packages, and details on package options such as plastic chip carriers and ceramic DIPs.
Key specifications include maximum operating frequencies, propagation delay, temperature range, and fuse technology. Production data, warranty information, and TI North American sales contacts are also listed for design engineers and distributors.
| Maximum fmax (no feedback) | 71.4 MHz |
|---|---|
| Maximum fmax (internal feedback) | 58.8 MHz |
| Maximum fmax (external feedback) | 55.5 MHz |
| Propagation delay | 10 ns max |
| Operating temperature range | 0 °C to 75 °C |
| Package options | Plastic chip carriers, plastic DIPs, ceramic DIPs |
| Fuse technology | Low‑Power Schottky with titanium‑tungsten fuses |
The propagation delay is specified as up to 10 ns.
The devices are characterized for operation from 0 °C to 75 °C.
They are offered in plastic chip carriers, plastic DIPs, and ceramic DIPs.
The devices can reach up to 71.4 MHz when no feedback is used.
