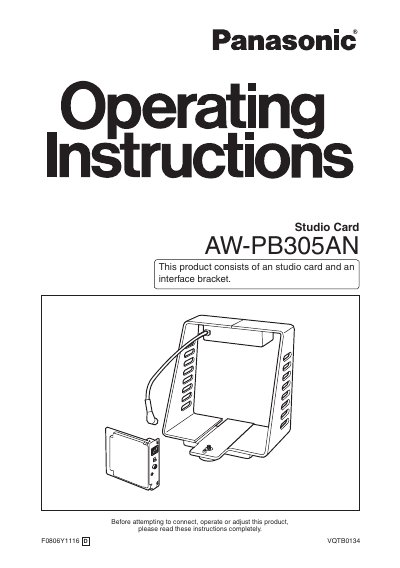

Panasonic AW-PB305AN Studio Card Operating Instructions
This manual provides operating instructions for the Panasonic AW-PB305AN Studio Card and Interface Bracket. The kit consists of a studio card designed to be installed into compatible convertible cameras (such as the AW-E350, AW-E650, AW-E655, AW-E750, and AW-E860) and an interface bracket for mounting the camera on a tripod or stand.
Read onlinePanasonic PB305 specifications
| Power requirements | DC 12 V |
|---|---|
| Power consumption | 15 W |
| Operating temperature | -10°C to +45°C |
| Studio card dimensions | 21.5 x 70.9 x 1 mm |
| Interface bracket dimensions | 190 x 183.1 x 71 mm |
Source: Panasonic AW-PB305AL Studio Card Operating Instructions
All Panasonic PB305 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What compatible convertible camera models can use the AW-PB305AN studio card?
The studio card is designed for installation in convertible cameras such as the AW-E350, AW-E650, AW-E655, AW-E750, and AW-E860.
From: Panasonic AW-PB305AN Studio Card Operating Instructions
What are the operating temperature limits for this product?
Do not use the unit below 14°F (-10°C) or above 113°F (+45°C), as extreme temperatures may cause malfunction.
From: Panasonic AW-PB305AN Studio Card Operating Instructions
Which camera models are compatible with the AW-PB305AL?
The AW-PB305AL is designed for convertible cameras such as the AW-E350, AW-E650, AW-E655, AW-E750, and AW-E860.
From: Panasonic AW-PB305AL Studio Card Operating Instructions
Which camera models are NOT compatible with the AW-PB305AL?
The AW-PB305A cannot be installed on the AW-RP605 and AW-PB605 models.
From: Panasonic AW-PB305AL Studio Card Operating Instructions
What signals does the AW-PB301 output?
The AW-PB301 can output R/G/B or Y/Pr/Pb component signals when installed in a convertible camera.
From: Panasonic AW-PB301/AW-PB305 Studio Card Operating Instructions
What signals does the AW-PB305 output?
The AW-PB305 only outputs composite video signals and Y/C signals.
From: Panasonic AW-PB301/AW-PB305 Studio Card Operating Instructions
