This document provides safety precautions for the Studio Card AW-PB305AL product, including fire, shock, and liquid protection. It also provides information on the disposal of waste electrical products.

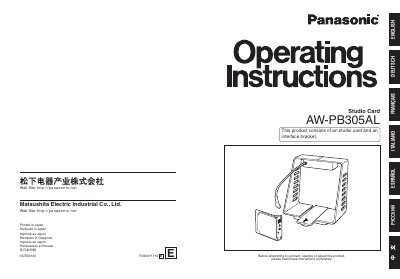

This document provides operating instructions for the Panasonic AW-PB305AL Studio Card and Interface Bracket. The kit consists of a studio card and an interface bracket designed to convert convertible cameras into studio cameras by allowing the use of a viewfinder and inter-communications headset. The studio card cannot be installed on AW-RP605 or AW-PB605 models.
| Power requirements | DC 12 V |
|---|---|
| Power consumption | 15 W |
| Operating temperature | -10°C to +45°C |
| Studio card dimensions | 21.5 x 70.9 x 1 mm |
| Interface bracket dimensions | 190 x 183.1 x 71 mm |
The AW-PB305AL is designed for convertible cameras such as the AW-E350, AW-E650, AW-E655, AW-E750, and AW-E860.
The AW-PB305A cannot be installed on the AW-RP605 and AW-PB605 models.
Yes, the AW-PB305AL incorporates the VIDEO ON/OFF switch function of the AW-VF64 viewfinder.
