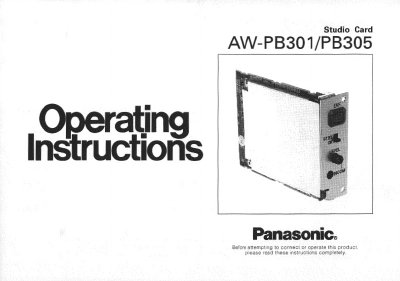

This manual provides operating instructions for the Panasonic AW-PB301 and AW-PB305 Studio Cards. These cards are designed to be installed in convertible cameras, such as the AW-E300, enabling studio functionality including electronic viewfinders (EVF) and intercom capabilities. The AW-PB301 supports component signals (R/G/B or Y/Pr/Pb), while the AW-PB305 outputs composite video and Y/C signals.
| Video output (AW-PB301) | Y/C: Y 1.0 V[p-p], C 0.286 V[p-p]; R/G/B: 0.7 V[p-p] |
|---|---|
| Power consumption | 3.8 W (AW-PB301), 0.5 W (AW-PB305) |
| Operating temperature | -10°C to +45°C |
| Weight | 105 g |
The AW-PB301 can output R/G/B or Y/Pr/Pb component signals when installed in a convertible camera.
The AW-PB305 only outputs composite video signals and Y/C signals.
Yes, when installed in a convertible camera like the AW-E300, the electronic viewfinder (EVF) and intercom will be usable.
