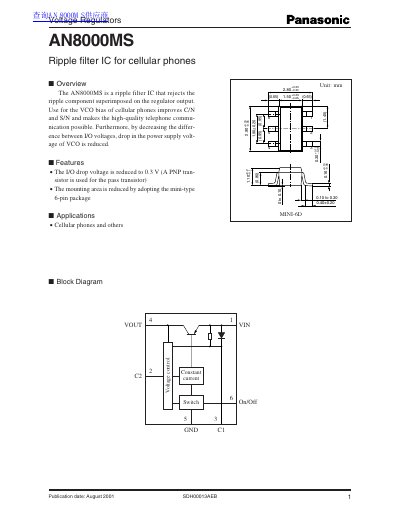

Panasonic AN8000MS Ripple Filter IC Datasheet
The AN8000MS is a ripple filter integrated circuit (IC) specifically designed for use in cellular phones. Its primary function is to reject the ripple component superimposed on the regulator output voltage. By reducing the difference between input and output voltages, it helps decrease the drop in the power supply voltage of the Voltage Controlled Oscillator (VCO), thereby improving the Carrier-to-Noise (C/N) and Signal-to-Noise (S/N) ratios for high-quality telephone communication. The device utilizes a PNP transistor for the pass transistor to achieve a low I/O drop voltage of 0.3 V and is packaged in a mini-type 6-pin MINI-6D package.
Read onlinePanasonic AN8000 specifications
| Package Type | MINI-6D |
|---|---|
| Supply Voltage (V IN) | 2.5 to 6.5 V |
| Operating Ambient Temperature | -25 to +75 °C |
| Storage Temperature | -40 to +125 °C |
| Power Dissipation (Ta = 75°C) | 60 mW |
All Panasonic AN8000 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application of the AN8000MS?
The AN8000MS is designed for cellular phones to reject ripple components on the regulator output and improve VCO bias quality.
What is the maximum allowable supply voltage?
The absolute maximum rating for the supply voltage (V IN) is 7.0 V.
What is the primary application of the AN8000MS?
It is used for the VCO bias of cellular phones to improve C/N and S/N and enable high-quality telephone communication.
What is the maximum allowable supply voltage?
The absolute maximum rating for the supply voltage (Vin) is 7.0 V.
What is the maximum output current for the AN8000/AN8000M Series voltage regulators?
The regulators can provide an output current of up to 50mA.
From: Panasonic AN8000/AN8000M Series Voltage Regulator Datasheet
What is the maximum input/output voltage difference for these regulators?
The maximum input/output voltage difference is 0.3V.
From: Panasonic AN8000/AN8000M Series Voltage Regulator Datasheet
