Key facts
- Brand
- Omron
- Model
- HEM-6051
- Category
- Home medical equipment
- Industry
- Health
- Documents
- 3
- Languages
- ZH
- Last added
- 2012-03-16
Start here

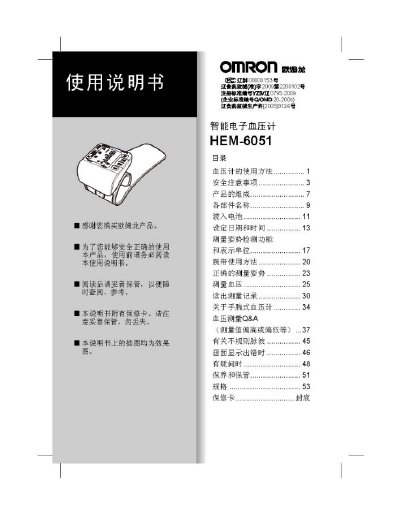

Omron HEM-6051 Intelligence Sphygmomanometer User Manual
This manual explains how to operate the Omron HEM‑6051 intelligence sphygmomanometer, including proper cuff placement, measurement procedures, and data recording. It also covers safety symbols, warnings, and precautions to prevent injury or device damage.
Additional sections describe battery selection and handling, storage recommendations, warranty information, and after‑sales service contacts. The document is written in Chinese and includes diagrams and safety icons for easy reference.
Omron HEM-6051 specifications
| Measurement range (pressure) | 0–299 mmHg |
|---|---|
| Measurement range (pulse) | 40–180 bpm |
| Pressure accuracy | ±3 mmHg |
| Pulse accuracy | ±5 % of reading |
| Power source | 2 × AA alkaline batteries |
| Battery life | ≈300 measurements per set of batteries |
| Device lifespan | 5 years or 30 000 measurements |
| Operating temperature | +10 °C to +40 °C |
| Storage temperature | -20 °C to +60 °C |
| Supported wrist circumference | 135–215 mm |
| Dimensions (W×H×D, without cuff) | 70 × 70 × 21 mm |
| Display type | Digital |
| Measurement method | Oscillometric (waveform method) |
| Pressure sensor type | Semiconductor capacitive pressure sensor |
Source: Omron HEM-6051 Digital Automatic Blood Pressure Monitor User Manual
All Omron HEM-6051 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of batteries should be used in the HEM‑6051?
Use two AA alkaline (or similar) dry cells; do not use other battery types.
From: Omron HEM-6051 Intelligence Sphygmomanometer User Manual
How should the device be stored if not used for a long time?
If the device will not be used for more than three months, remove the batteries to avoid damage.
From: Omron HEM-6051 Intelligence Sphygmomanometer User Manual
How should I respond to an error that shows pressure over 300 mmHg?
Stop moving your arm or body, keep the cuff steady, press the pressure button and repeat the measurement.
From: Omron HEM-6051 Digital Automatic Blood Pressure Monitor User Manual
What type of batteries does the HEM-6051 use?
It uses two size‑7 alkaline or manganese dry cells.
What should be done if a battery leaks or is removed?
Remove the battery immediately and replace it with two new cells to avoid damage.
