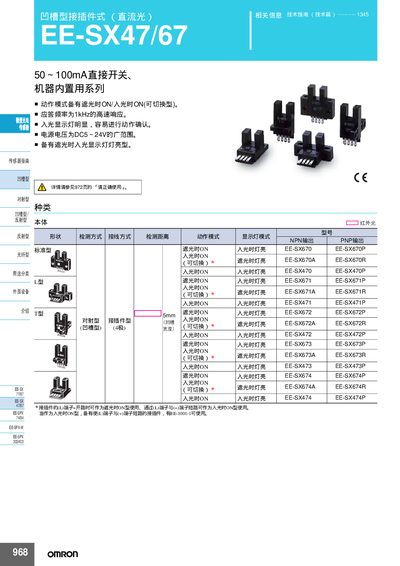

Omron EE-SX47/67 Sensor Quick-Disconnect Manual
This manual describes the EE‑SX47/67 series of flush‑style photoelectric sensors, covering detection types, action modes, and LED indicators. It includes tables of model variants, wiring diagrams, and accessory part numbers for quick‑disconnect installations.
Technical data such as power supply range, response frequency, output current limits, and environmental limits are listed, along with safety notes, recommended soldering conditions, and dimensional drawings for proper mounting. This manual is written in Chinese.
Omron EE-SX47 specifications
| Supply voltage | 5 to 24 VDC |
|---|---|
| Current consumption (NPN) | 35 mA max |
| Enclosure rating | IP50 (IEC60529) |
| Ambient temperature range | -25 °C to +55 °C (operating) |
| Sensing distance | 5 mm (slot width) |
All Omron EE-SX47 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range do the EE‑SX47/67 sensors support?
They operate from 5 VDC up to 24 VDC.
Are the sensors water‑proof?
No, they have an IP50 rating and are not water‑proof; they should not be exposed to splashes.
What is the operating voltage range for the EE‑SX47/67 sensor?
The sensor operates on a DC voltage range of 5 V to 24 V.
What is the maximum output current for the NPN type?
The NPN output can supply up to 100 mA.
