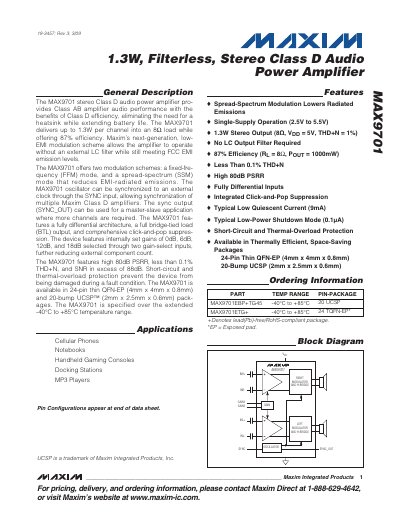

Maxim MAX9701 Stereo Class D Audio Power Amplifier Datasheet
The MAX9701 stereo Class D audio power amplifier provides Class AB audio performance with the efficiency of Class D, eliminating the need for a heatsink and extending battery life. It delivers up to 1.3 W per channel into an 8 Ω load while operating from a single 2.5 V to 5.5 V supply.
The device features a fully differential architecture, BTL output, internal gain settings (0 dB, 6 dB, 12 dB, 18 dB), click‑and‑pop suppression, and protection against short‑circuit and thermal overload. It is offered in 24‑pin thin‑QFN‑EP and 20‑bump UCSP packages and meets FCC EMI limits without an external LC filter.
Maxim MAX9701 specifications
| Output Power (per channel) | 1.3 W into 8 Ω |
|---|---|
| Efficiency | 87 % |
| Supply Voltage Range | 2.5 V – 5.5 V |
| THD+N | < 0.1 % |
| Power‑Supply Rejection Ratio (PSRR) | 80 dB |
| Signal‑to‑Noise Ratio (SNR) | > 88 dB |
| Gain Settings | 0 dB, 6 dB, 12 dB, 18 dB |
Source: Maxim MAX9701 Stereo Class D Audio Power Amplifier Datasheet
All Maxim MAX9701 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output power of the MAX9701?
The MAX9701 can deliver up to 1.3 W per channel into an 8 Ω load.
From: Maxim MAX9701 Stereo Class D Audio Power Amplifier Datasheet
What supply voltage range does the MAX9701 support?
It operates from a single supply of 2.5 V to 5.5 V.
From: Maxim MAX9701 Stereo Class D Audio Power Amplifier Datasheet
How much output power can the MAX9701 deliver per channel?
It can deliver up to 1.3 W per channel into an 8 Ω load.
What efficiency does the MAX9701 achieve at full power?
The amplifier reaches about 87 % efficiency when delivering 1 W into an 8 Ω load.
