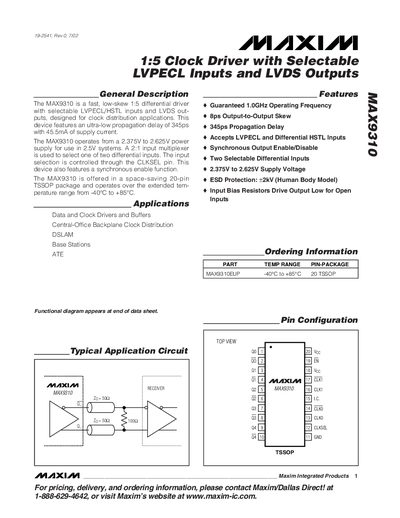

The MAX9310 is a fast, low-skew 1:5 differential driver with selectable LVPECL/HSTL inputs and LVDS outputs, designed for clock distribution applications. This device features an ultra-low propagation delay of 345ps with 45.5mA of supply current. The MAX9310 operates from a 2.375V to 2.625V power supply for use in 2.5V systems. A 2:1 input multiplexer is used to select one of two differential inputs. The input selection is controlled through the CLKSEL pin. This device also features a synchronous enable function. The MAX9310 is offered in a space-saving 20-pin TSSOP package and operates over the extended temperature range from -40°C to +85°C.
The MAX9310 is a fast, low‑skew 1:5 differential driver designed for clock distribution. It accepts selectable LVPECL/HSTL inputs and provides five LVDS outputs, operating from a 2.375 V to 2.625 V supply and supporting up to 1.0 GHz frequencies.
The device is offered in a 20‑pin TSSOP package, operates over –40 °C to +85 °C, and includes features such as 345 ps propagation delay, 8 ps output‑to‑output skew, and +2 kV ESD protection. Detailed electrical characteristics, pin descriptions, and typical application circuits are provided.
| Supply Voltage | 2.375 V to 2.625 V |
|---|---|
| Supply Current | 45.5 mA |
| Propagation Delay | 345 ps |
| Output‑to‑Output Skew | 8 ps |
| ESD Protection | +2 kV (Human Body Model) |
| Package | 20‑pin TSSOP |
| Temperature Range | -40 °C to +85 °C |
| Number of Differential Outputs | 5 |
The device operates from a 2.375 V to 2.625 V supply.
The propagation delay is 345 ps.
It provides five differential LVDS outputs (1:5 driver).
