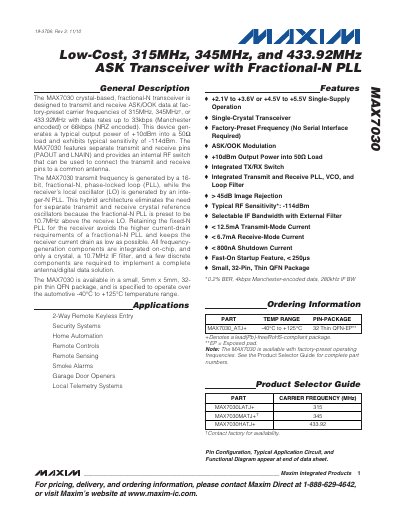

Maxim MAX7030 ASK Transceiver Datasheet
The MAX7030 is a crystal‑based, fractional‑N transceiver designed for ASK/OOK data transmission. It offers factory‑preset carrier frequencies of 315 MHz, 345 MHz or 433.92 MHz, up to 33 kbps Manchester‑encoded or 66 kbps NRZ data rates, and typical output power of +10 dBm into a 50 Ω load. The device integrates separate transmit and receive pins, an internal RF switch, and both transmit and receive PLLs, eliminating the need for external crystal references.
The part is supplied in a 5 mm × 5 mm, 32‑pin thin QFN package and operates over an automotive temperature range of –40 °C to +125 °C. It supports single‑supply operation from 2.1 V to 3.6 V (or 4.5 V to 5.5 V) and features low current consumption, high image rejection, and a selectable IF bandwidth.
Maxim MAX7030 specifications
| Carrier Frequency Options | 315 MHz, 345 MHz, 433.92 MHz |
|---|---|
| Typical Output Power | +10 dBm into 50 Ω load |
| Typical Sensitivity | -114 dBm |
| Supply Voltage (Single‑Supply) | 2.1 V to 3.6 V (or 4.5 V to 5.5 V) |
| Package | 5 mm × 5 mm, 32‑pin thin QFN |
| Operating Temperature Range | -40 °C to +125 °C |
| Transmit‑Mode Current | < 12.5 mA |
| Image Rejection | >45 dB |
All Maxim MAX7030 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What carrier frequencies are preset for the MAX7030?
The MAX7030 is available with factory‑preset carrier frequencies of 315 MHz, 345 MHz, or 433.92 MHz.
What is the typical output power into a 50 Ω load?
The device typically delivers +10 dBm output power into a 50 Ω load.
