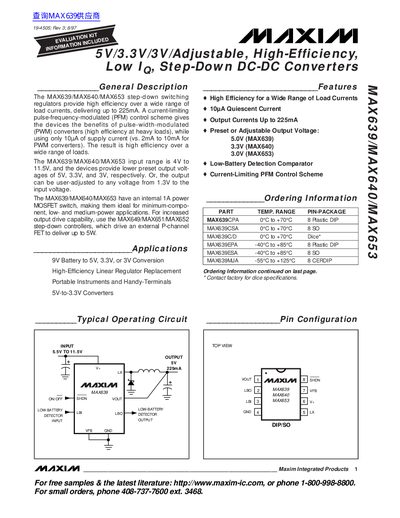

Maxim MAX639/MAX640/MAX653 High-Efficiency Low-IQ Step-Down DC-DC Converters Handbook
The MAX639, MAX640 and MAX653 are step‑down switching regulators that provide high efficiency over a wide range of load currents, delivering up to 225 mA. They operate from an input range of 4 V to 11.5 V and offer preset output voltages of 5 V, 3.3 V and 3 V, or an adjustable output from 1.3 V to the input voltage.
The document includes absolute maximum ratings, electrical characteristics, typical operating curves, pin descriptions, layout recommendations and inverter configurations. It also provides ordering information for the various package options and design tips for low‑quiescent‑current applications.
Maxim MAX640 specifications
| Input Voltage Range | 4 V to 11.5 V |
|---|---|
| Maximum Output Current | 225 mA |
| Quiescent Current (Shutdown) | 10‑20 µA |
Source: Maxim MAX639/MAX640/MAX653 High-Efficiency Low-IQ Step-Down DC-DC Converters Handbook
