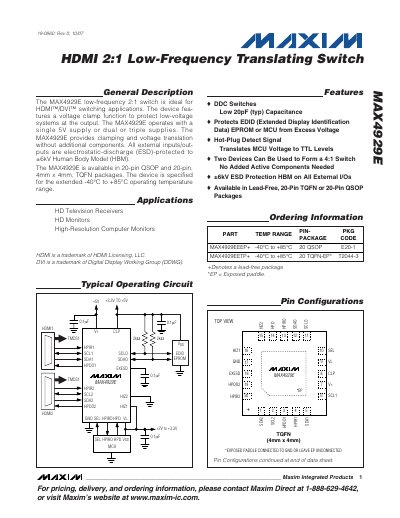

Maxim MAX4929E HDMI 2:1 Low-Frequency Translating Switch Datasheet
The MAX4929E is a low‑frequency 2:1 switch designed for HDMI/DVI applications. It provides a voltage‑clamp function, ±6 kV HBM ESD protection on all I/Os, and can operate from a single 5 V supply or dual/triple supplies. The device is offered in 20‑pin QSOP and 20‑pin 4 mm × 4 mm TQFN packages.
The datasheet includes absolute maximum ratings, electrical characteristics, pin descriptions, timing diagrams, and typical operating curves. It also explains how two MAX4929E devices can be combined to form a 4:1 switch and notes that power‑supply sequencing is not required.
Maxim MAX4929E specifications
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Storage Temperature Range | -65°C to +150°C |
| Continuous Current into Any I/O Terminal | 25 mA |
| Input Logic‑Low Voltage (V_IL) | 0.8 V at V+ = 4.5 V |
Source: Maxim MAX4929E HDMI 2:1 Low-Frequency Translating Switch Datasheet
All Maxim MAX4929E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the ESD protection rating of the MAX4929E pins?
All external inputs and outputs are protected to ±6 kV Human Body Model (HBM).
From: Maxim MAX4929E HDMI 2:1 Low-Frequency Translating Switch Datasheet
Can two MAX4929E devices be combined to form a 4:1 switch?
Yes, two MAX4929E devices can be connected together to create a 4:1 switch using a single control bit.
From: Maxim MAX4929E HDMI 2:1 Low-Frequency Translating Switch Datasheet
What is the ESD protection rating of the MAX4929E?
The device is protected to +6 kV Human Body Model on all external pins.
From: Maxim MAX4929E HDMI 2:1 Low-Frequency Translating Switch Datasheet
What supply voltage does the MAX4929E require?
It operates from a single 5 V supply or can use dual or triple supplies.
From: Maxim MAX4929E HDMI 2:1 Low-Frequency Translating Switch Datasheet
