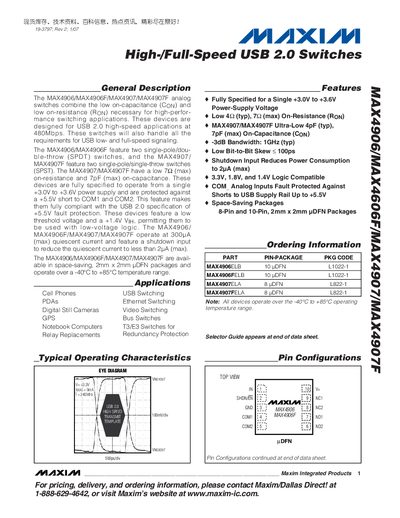

The MAX4906/MAX4906F/MAX4907/MAX4907F are analog switches that combine low capacitance and low resistance for high-performance switching applications. They are designed for USB 2.0 high-speed applications and can handle USB low-speed and full-speed signaling. These switches have a low threshold voltage and a high-level input voltage of +1.4V, making them suitable for low-voltage logic. They have low quiescent current and also feature a shutdown input to further reduce the quiescent current.
The MAX4906, MAX4906F, MAX4907 and MAX4907F are high‑/full‑speed USB 2.0 analog switches offered in compact 2 mm × 2 mm UDFN packages. They operate from a single +3.0 V to +3.6 V supply, provide low on‑resistance and low on‑capacitance, and include fault protection against shorts up to +5.5 V.
Typical applications include USB switching for cell phones, PDAs, digital cameras, notebooks, and Ethernet or bus switching. The devices feature a shutdown input that reduces quiescent current to under 2 µA, making them suitable for power‑sensitive designs.
| Supply Voltage Range | +3.0 V to +3.6 V |
|---|---|
| On‑Resistance (Ron) | typ 0.4 Ω, max 0.7 Ω |
| On‑Capacitance (Con) | typ 4 pF, max 7 pF |
| Quiescent Supply Current | 300 µA (max) |
| Shutdown Current | ≤ 2 µA (max) |
| Fault‑Protection Threshold | +5.5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 2 mm × 2 mm UDFN (8‑pin or 10‑pin) |
They operate from a single +3.0 V to +3.6 V power‑supply voltage.
Typical on‑resistance is about 0.4 Ω, with a maximum of 0.7 Ω.
Yes, the analog inputs are fault‑protected against shorts up to +5.5 V.
In shutdown mode the device draws no more than 2 µA.
