MAX3544 is a single-conversion television tuner produced by Maxim. It supports DVB-T, DVB-C, GB20600 standards, and receives frequencies from 47MHz to 862MHz. The output frequency is 36MHz IF.
The Maxim MAX3544 is a broadband single‑conversion tuner designed for digital television sets and terrestrial receivers. It covers the full TV band from 47 MHz to 862 MHz and converts the selected channel to a standard 36 MHz IF. The device integrates a low‑noise input amplifier, RF tracking filter, image‑rejection mixer, peak detector, optional RF‑AGC loop, fractional‑N PLL VCO, IF band‑pass filter, IF VGA, and a crystal oscillator, all in a 6 mm × 6 mm QFN package.

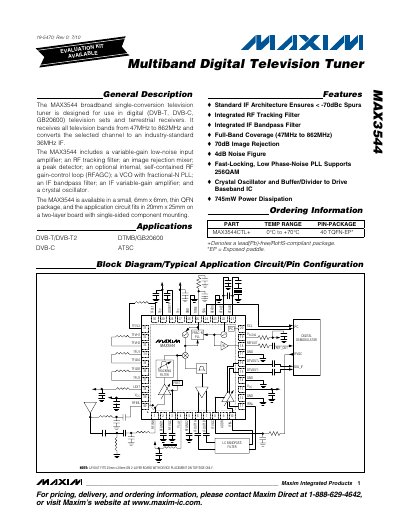

The datasheet provides absolute maximum ratings, DC and AC electrical characteristics, a complete pin description, I²C‑compatible serial interface details, typical register settings, and performance graphs such as gain, noise figure, and blocker handling. It also includes application guidance for selecting input ports and tracking filters based on frequency.
| Frequency Coverage | 47 MHz – 862 MHz |
|---|---|
| IF Output Frequency | 36 MHz |
| Supply Voltage | 3.1 V – 3.5 V |
| Supply Current (IF VGA enabled) | 225 mA – 270 mA |
| Noise Figure | 4 dB |
| Programmable Registers | 18 |
| I²C Bus Clock Frequency | up to 400 kHz |
The MAX3544 covers 47 MHz to 862 MHz, encompassing all television bands.
The device operates with a supply voltage between 3.1 V and 3.5 V.
The MAX3544 provides 18 programmable registers.
The I²C‑compatible serial interface supports clock frequencies up to 400 kHz.
