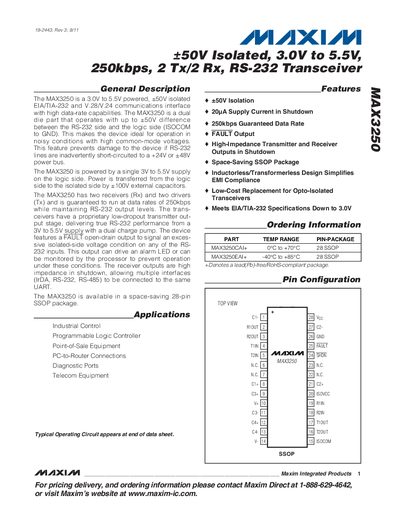

Maxim MAX3250 RS-232 Transceiver Datasheet
The MAX3250 is a +50 V isolated EIA/TIA‑232 and V.28/V.24 communications interface that operates from a 3.0 V to 5.5 V supply. It provides two transmitters and two receivers, guarantees 250 kbps data rates, and includes a FAULT open‑drain output for over‑voltage protection. The device is supplied in a space‑saving 28‑pin SSOP package and is intended for noisy industrial environments, point‑of‑sale equipment, telecom gear and other applications requiring high common‑mode voltage isolation.
Key features include indeterminate‑/transformer‑less isolation, low‑power shutdown (≈20 µA), high‑impedance outputs in shutdown, and a dual charge‑pump voltage converter that generates ±5.5 V on the isolated side. The datasheet provides detailed electrical characteristics, timing specifications, recommended capacitor values, layout guidelines, and ordering information.
Maxim MAX3250 specifications
| Isolation Voltage | +50 V |
|---|---|
| Supply Voltage (logic side) | 3.0 V to 5.5 V |
| Data Rate | 250 kbps (guaranteed) |
| Drivers / Receivers | 2 Tx, 2 Rx |
| Shutdown Supply Current | ≈20 µA |
| Operating Temperature Range | -40 °C to +85 °C (MAX3250EAI) |
| Package | 28‑pin SSOP |
| Isolation Resistance | 60 kΩ |
| Fault Output | Open‑drain, active low |
