Start here

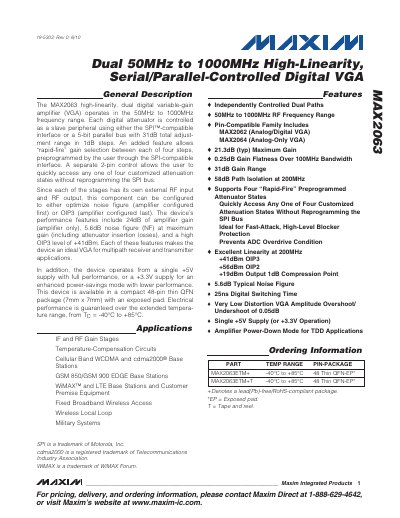

Maxim MAX2063 Dual Digital Variable-Gain Amplifier Datasheet
The MAX2063 is a high‑linearity, dual‑path digital variable‑gain amplifier that operates from 50 MHz to 1 GHz. Each path includes a digitally controlled attenuator selectable via SPI‑compatible or 5‑bit parallel interfaces, with rapid‑fire pre‑programmed gain states.
The device is supplied from a single +5 V or +3.3 V rail, packaged in a 48‑pin thin QFN‑EP, and is qualified for an extended temperature range of –40 °C to +85 °C. Detailed electrical characteristics, typical operating curves, and layout recommendations are provided for designers.
Maxim MAX2063 specifications
| Operating Frequency Range | 50 MHz to 1000 MHz |
|---|---|
| Total Gain Range | 31 dB |
| Typical Noise Figure | 5.6 dB |
| Output Third‑Order Intercept (OIP3) | +41 dBm |
| Supply Voltage (5 V version) | 4.75 V – 5.25 V |
| Supply Voltage (3.3 V version) | 3.135 V – 3.465 V |
| Supply Current (5 V) | 148 mA – 205 mA |
| SPI Maximum Clock Speed | 20 MHz |
| Attenuator Step Size | 1 dB |
Source: Maxim MAX2063 Dual Digital Variable-Gain Amplifier Datasheet
All Maxim MAX2063 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating frequency range of the MAX2063?
The MAX2063 operates from 50 MHz up to 1000 MHz.
From: Maxim MAX2063 Dual Digital Variable-Gain Amplifier Datasheet
What is the total gain range of the device?
It provides a total gain adjustment of 31 dB.
From: Maxim MAX2063 Dual Digital Variable-Gain Amplifier Datasheet
What supply voltage does the MAX2063 require?
The device operates with VCC between 4.75 V and 5.25 V (or 3.3 V for reduced performance).
What is the attenuation step size of the MAX2063?
Attenuation can be set in 1 dB steps across the 31 dB range.
