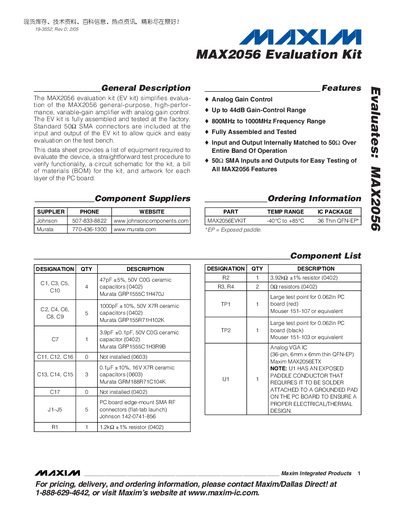

Maxim MAX2056 Evaluation Kit User Manual
The MAX2056 Evaluation Kit is a fully assembled, factory‑tested platform that simplifies evaluation of the MAX2056 general‑purpose, high‑performance variable‑gain amplifier. It includes 50 Ω SMA connectors for easy bench testing and a complete bill of materials.
The manual covers quick‑start setup, detailed connection diagrams, test equipment requirements, step‑by‑step measurement procedures, options for modifying the kit, and layout considerations for PCB design. Figures show the schematic and board layers, and ordering information is provided for component sourcing.
Maxim MAX2056 specifications
| Frequency Range | 800 MHz to 1000 MHz |
|---|---|
| Typical Gain | 15.5 dB |
| Noise Figure | 4.5 dB |
| Output 1 dB Compression Point | 23.5 dBm |
| Output Third‑Order Intercept (OIP3) | 39 dBm |
| Gain‑Control Range | 22 dB or 44 dB |
| Supply Voltage | 4.75 V to 5.25 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 36‑pin thin QFN (6 mm × 6 mm × 0.8 mm) with exposed pad |
Source: Maxim Integrated MAX2056 Variable-Gain Amplifier Datasheet
All Maxim MAX2056 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What RF frequency range does the MAX2056 support?
It operates from 800 MHz to 1000 MHz.
From: Maxim Integrated MAX2056 Variable-Gain Amplifier Datasheet
How many gain‑control ranges are available on the MAX2056?
Two selectable ranges: 22 dB or 44 dB of analog gain control.
From: Maxim Integrated MAX2056 Variable-Gain Amplifier Datasheet
What frequency range does the MAX2056 cover?
The MAX2056 operates from 800 MHz to 1000 MHz.
What supply voltage is required for the MAX2056?
It requires a supply voltage between 4.75 V and 5.25 V.
What voltage range should be applied to the VCNTL pin?
The VCNTL pin operates from 1 V to 4.5 V.
What test equipment is required to evaluate the kit?
A 5 V/0.3 A DC power supply, a variable 1‑4.5 V supply for gain control, two digital multimeters, a signal source, a spectrum analyzer, and optionally a network analyzer.
