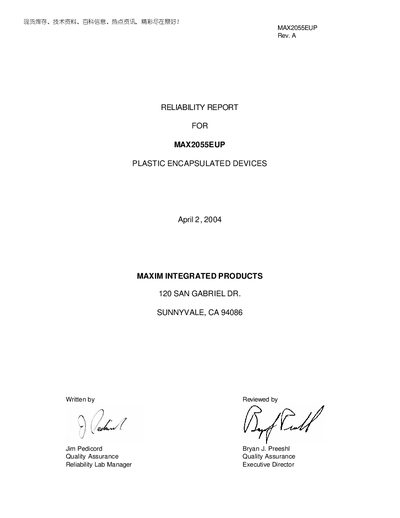

Maxim MAX2055EUP Plastic Encapsulated Devices Reliability Report
This document provides a comprehensive reliability report for the Maxim MAX2055EUP plastic‑encapsulated device. It includes a description of the high‑performance, digitally controlled variable‑gain ADC driver/amplifier, packaging details, manufacturing processes, and quality‑assurance contacts.
The report also presents the results of accelerated life, moisture resistance, ESD, and latch‑up testing, along with observed defect rates, inspection levels, and sampling plans. Key specifications such as operating temperature range, attenuation performance, and package type are summarized.
Maxim MAX2055EUP specifications
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Attenuation Range | 23 dB |
| Attenuation Accuracy | +0.2 dB |
| Package Type | 28‑Pin TSSOP |
| Input Signal Rating | -0.3V to +(VCC + 0.25V) |
| Continuous Power Dissipation | 2100 mW |
| Storage Temperature Range | -65°C to +165°C |
| Moisture Sensitivity Rating | UL94‑V0 |
| Outgoing Inspection Level | 0.1% for all electrical parameters |
| Sampling Plan | Mil‑Std‑105D |
Source: Maxim MAX2055EUP Plastic Encapsulated Devices Reliability Report
