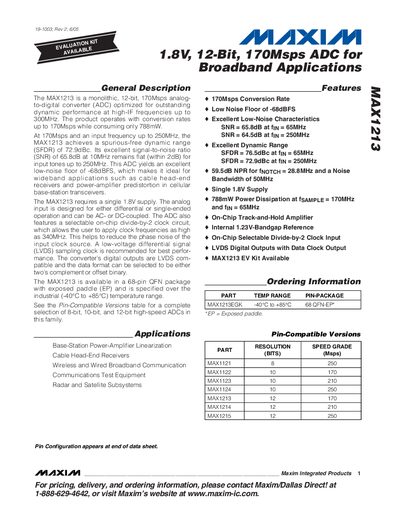

Maxim MAX1213 12‑Bit 170Msps ADC Datasheet
The MAX1213 is a monolithic 12‑bit analog‑to‑digital converter optimized for high‑IF frequencies up to 300 MHz. It operates from a single 1.8 V supply, consumes 788 mW at 170 Msps, and provides a low noise floor of –68 dBFS, making it suitable for cable head‑end receivers and base‑station predistortion.
The device is offered in a 68‑pin QFN‑EP package, supports differential or single‑ended inputs, and features LVDS digital outputs with selectable two’s complement or offset binary data formats. Detailed electrical characteristics, pin descriptions, and package dimensions are provided in the datasheet.
Maxim MAX1213 specifications
| Conversion Rate | 170 Msps |
|---|---|
| Supply Voltage | 1.8 V (single supply) |
| Power Dissipation | 788 mW at 170 Msps |
| Maximum Input Frequency | 300 MHz |
| Low‑Noise Floor | -68 dBFS |
