Start here

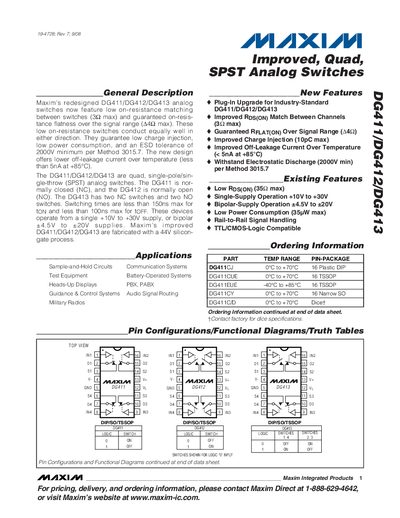

Maxim DG411/DG412/DG413 Datasheet
The Maxim DG411/DG412/DG413 family are quad, single‑pole/single‑throw analog switches with low on‑resistance, low charge injection, and high ESD tolerance. The DG411 is normally‑closed, the DG412 normally‑open, and the DG413 combines two of each. They operate from a single +10 V to +30 V supply or a bipolar +4.5 V to +20 V supply and are fabricated with a 44 V silicon‑gate process.
The datasheet provides absolute maximum ratings, electrical characteristics for both dual‑ and single‑supply operation, typical performance graphs, pin descriptions, timing diagrams, and package information for DIP, TSSOP, SO, QFN and other formats.
Maxim DG413 specifications
| On‑Resistance (RDS(on)) max | 3 Ω max |
|---|---|
| On‑Resistance flatness (RFLAT(ON)) max | 4 Ω max |
| Switching time (ton) max | 150 ns max |
| Power consumption max | 35 µW max |
| Off‑leakage current max | 5 nA at +85 °C |
| ESD tolerance | 2000 V minimum |
| Supply voltage range | single +10 V to +30 V or bipolar +4.5 V to +20 V |
| Operating temperature range (typical) | 0 °C to +70 °C (some variants to +125 °C) |
All Maxim DG413 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum on‑resistance of the DG411/DG412/DG413 switches?
The on‑resistance is limited to 3 Ω max per channel.
What supply voltages can be used with the DG411/DG412/DG413?
They can be powered from a single +10 V to +30 V supply or from bipolar +4.5 V to +20 V supplies.
What is the maximum on‑resistance of the DG411/DG412/DG413 switches?
The maximum on‑resistance is 382 mΩ.
From: Maxim DG411/DG412/DG413 Quad SPST Analog Switches Datasheet
What ESD protection level do these analog switches provide?
They are rated for a minimum of 2000 V ESD tolerance per Method 3015.7.
From: Maxim DG411/DG412/DG413 Quad SPST Analog Switches Datasheet
