Key facts
- Brand
- Linear Technology
- Model
- LTC695
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-07
Start here

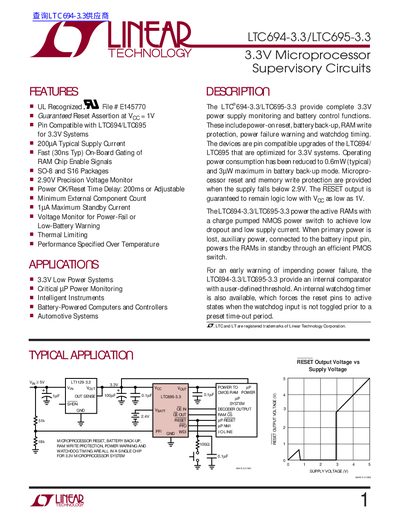

Linear Technology LTC694-3.3/LTC695-3.3 Datasheet
Datasheet 16 pages · 143 KB · EN
The LTC694-3.3/LTC695-3.3 are complete 3.3V power supply monitoring and battery control devices designed for microprocessor systems. They provide functions including power-on reset, battery back-up, RAM write protection, power failure warning, and watchdog timing in a single chip.
Read onlineLinear Technology LTC695 specifications
| Supply Current (Typical) | 0.6 mA |
|---|---|
| Reset Assertion Voltage | 1V |
| Voltage Monitor Threshold | 2.90V |
| Power OK/Reset Time Delay | 200ms or Adjustable |
| Maximum Standby Current | 1A |
All Linear Technology LTC695 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current of this device?
The typical supply current is 0.6 mA.
How long does the power-on reset time delay last?
The default power-on reset time delay is 200 ms.
