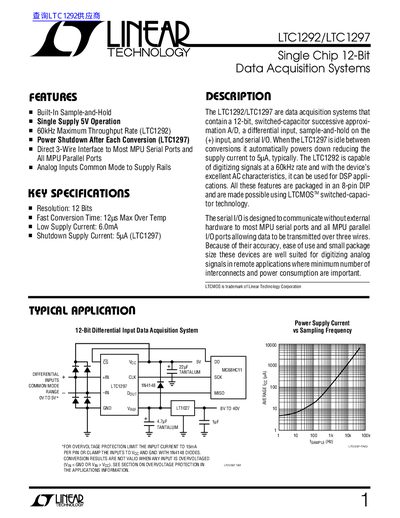

Linear Technology LTC1292/LTC1297 Data Acquisition System Datasheet
The LTC1292/LTC1297 are data acquisition systems containing a 12-bit switched-capacitor successive approximation A/D converter with differential input and sample-and-hold on the positive input. The devices utilize LTCMOS technology to achieve high accuracy in an 8-pin DIP package, suitable for digitizing analog signals in remote applications.
Read onlineLinear Technology LTC1292 specifications
| Maximum Throughput Rate (LTC1292) | 60kHz |
|---|---|
| Shutdown Supply Current (LTC1297) | 5uA |
| Supply Voltage Operation | Single Supply 5V |
| Operating Temperature Range (Commercial) | 0°C to 70°C |
| Package Type | 8-pin DIP |
